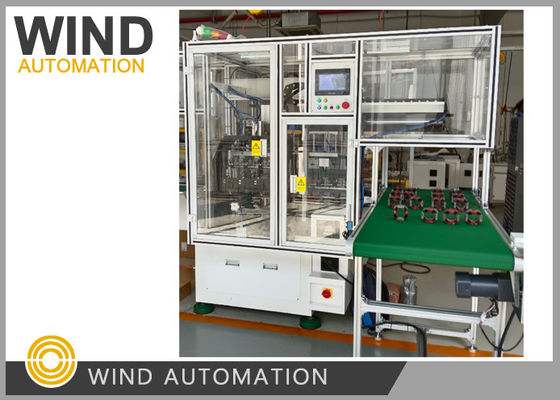

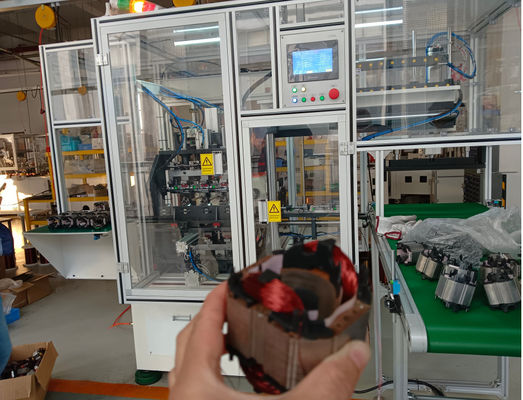

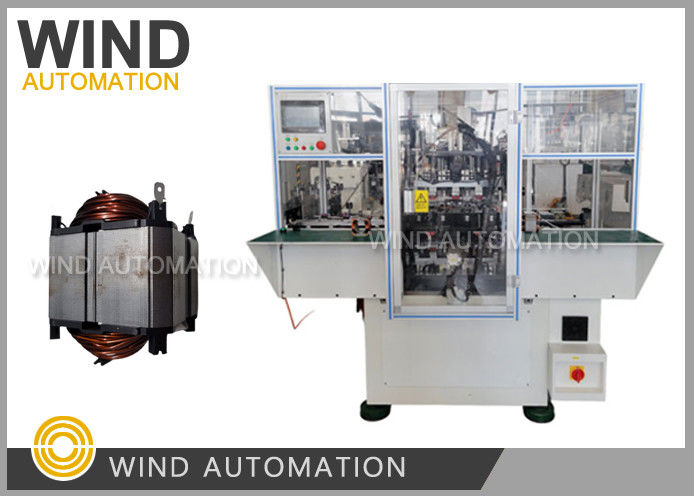

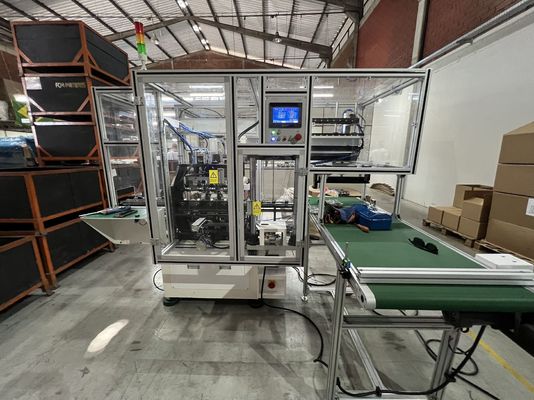

Drill Machine Motor Stator Fields Coil Winding Machine Fully Automatic

Name: Drill Machine Motor Stator Fields Coil Winding Machine Fully Automatic
Brand: Shanghai Wind Automation Equipment Co.,Ltd
Availability: InStock

Drill Machine Motor Stator Fields Coil Winding Machine Fully Automatic supplier

Large Image : Drill Machine Motor Stator Fields Coil Winding Machine Fully Automatic

Product Details:

Contact Now

Detailed Product Description

Fully automatical stator winding machine for two pole universal stator winder WIND-ASW-2 Automatically load the tooling, clamp the wire, automatically finish the winding,

Parameter:

Stack height 10-70mm

Stator ID 20-60mm
Stator OD 50-130mm
Stator poles No. 2
Wire diameter 0.15-1.3mm
Lubrication mode: continuous lubrication oiling machine
AC380V, 50/60Hz, 4.5KW, air pressure 57kg/cm2
About 1200kgs, 1500 x 2100 x 1650mm
NCM No / HS Code:8479811000

Video:

https://vimeo.com/139844056

http://youtu.be/W1CtCbkqNXA
