Needle Winding Ceiling Fan Motor Winding Machine For Production Prototypes Stators

China Needle Winding Ceiling Fan Motor Winding Machine For Production Prototypes Stators supplier

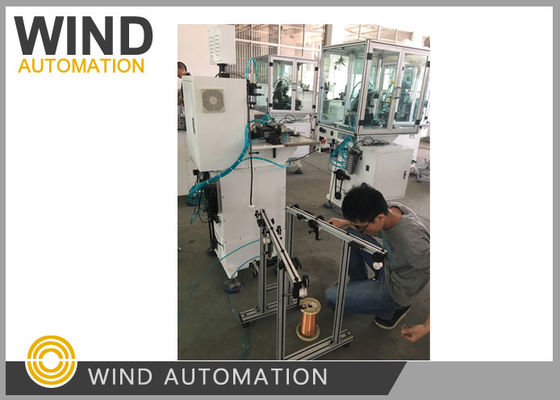

Large Image :  Needle Winding Ceiling Fan Motor Winding Machine For Production Prototypes Stators

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: Major Parts CE
Model Number: WIND-1-TSM

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Delivery Time: 45 working days
Payment Terms: T/T
Detailed Product Description
Application: Stepping Motor,Brushless DC Motor Muti Poles Stator,Fan Motor Prototypes Stator: Pilot Run Laboratory Use For Production Of Prototypes Of Stators.
Working Station: Single Station Winding Speed: 300RPM To 500RPM According Wire Gauge
Automatic Type: Auto Winding, Auto Indexing Machine Color: White Or Per Customer Requirement
Muti Poles: 6poles,8poles,9poles,10poles,12poles,14poles,18poles After Sales: Engineers Available To Service Machinery Overseas
High Light:

flyer winding machine

,

brushless motor winding

Needle Winding Machine Used In Laboratory For Production Prototypes Of Stators WIND-1-TSM







Application:



WIND-1-TSM is a basic internal stator needle winding machine to be used in laboratory for production of



prototypes of stators covering 6poles,8poles,9poles,10poles,12poles,14poles,18poles, such as



Stepping Motor,Brushless DC Motor Muti Poles Stator







 Competitive Advantages:



 1. Easy to change tooling for types of stators, basic and smart device for needle winding one slot by one



 2. Can handle big and small mutipole BLDC stators with Min. opending slot size 1mm



 3. For stator inding machine type WIND-1-TSM,



     stator with 6poles, 8poles and 9 poles can use same winding machine by changing tooling,



     stator with 10poles, 12poles, 14 poles can use same winding machine by changing the tooling



 4. Very suitable for the BLDC motor manufacturers who can invest for small quantity products







Needle Winder Techanical Specification:



Wire diameter: 0.08~1.20mm



Turns No.0-99999



Stator ID:9~65mm Stack height:7-115mm



Stator Min Slot size :  1mm



Min. Needle Nozzle Size:3*0.35*8.5mm



Operation option: stepping/Auto



Stator poles: 6 poles, 8 poles, 9poles,10poles,12 poles,14pole,18poles (Customized)



Air pressure:0.5~0.7MPa Power:1KW, AC220V 50/60Hz



Weight: about 350kgs Dimension: 1600(L)x900(W)x1450(H)mm



Productivity: Per stator opening of slot 1mm, suggest speed below 350RPM







Question and Answer:





1. Which type of stator needle winding shall we select for our stator?



    The machine WIND-1-TSM is widely used for 6 poles, 8 poles, 9 pole, 10 poles, 12 poles, 14 poles and



    18 poles



    Stepper motor and BLDC motor with Single phase or three phase



    Machine Winding, Indexing and Cutting automatically without arraying for slot filling rate not high stator



   The winding machine WIND-1-TSM with winding not arrraying automatic indexing deviceand angle swing



    cam device is very suitable for winding big and small wire , heave or light BLDC motor stators




2. How is the training to operate the stator winding machine?


    For machine tranining, usually you send one engineer people to our plant to inspect before delivery,



    WIND-1-TSM is not a complicated machine, if your engineer have experience then you don't need to

    come and we can take some vidoes for you to operate




3. Is the machine from you is switched on and put into operation?



    Yes, machine is switched on from machine side for power on machine and



    Start, Emergency button , Auto/Step swith to operate machine





4. I have not wound stator. Why do you need for wound stator?


   The wound stator can show Shanghai Wind Automation

   the winding diagram which include winding way,bridge wire, terminal wire

   If you don't have wound stator, please provide winding drawing







Below samples and drawing are needed for machine manufacturing and commissioning:



1. Stator stack 5pcs without winding with insulation cap or isolation paper



2. Wound stator 1pc



3. Copper wire 1 roll enough for winding 10pcs stators



4. Stator lamination drawing and winding drawing







Please click below picture to view video

Needle Winding Ceiling Fan Motor Winding Machine For Production Prototypes Stators
