Double Station Stator Winding Machine For Out Runner Single Phase 3 Phase Fan Motor

China Double Station Stator Winding Machine For Out Runner Single Phase 3 Phase Fan Motor supplier
Double Station Stator Winding Machine For Out Runner Single Phase 3 Phase Fan Motor supplier Double Station Stator Winding Machine For Out Runner Single Phase 3 Phase Fan Motor supplier Double Station Stator Winding Machine For Out Runner Single Phase 3 Phase Fan Motor supplier

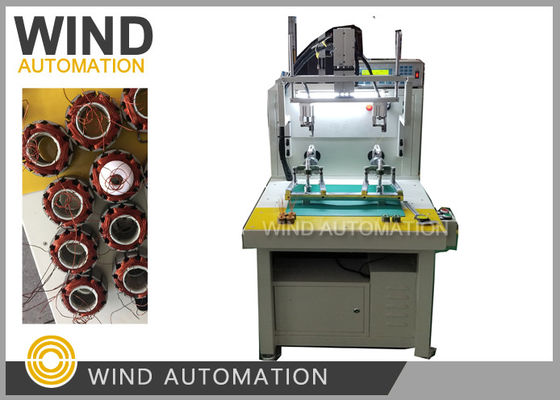

Large Image :  Double Station Stator Winding Machine For Out Runner Single Phase 3 Phase Fan Motor

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-HMW-205D

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiable
Delivery Time: 30 working days
Payment Terms: T/T
Detailed Product Description
Condition: New Winding Direction: CW Or CCW Can Be Setted
Working Station: Double Station Fan Motor Winding: 6 Slots, 12 Slots (Aux Coil, Main Coil)
Automatic Type: Fully Automatic Machine Color: White Or Per Customer Requirement
Winding Motor: External Rotor Motor After Sales: Engineers Available To Service Machinery Overseas
High Light:

flyer winding machine

,

motor winding machine

Stator Winding Machine Suitable For Out Runner Single Phase 3 Phase Fan Motor WIND-MMW-205D







Fan Motor Stator Winding Machine Application:



Out runner stator winding, three phase 4pole winding R Y G connection,  three phase 2 pole winding,



single phase 2 poles, 6 poles outside BLDC stator, 12 slots 6 poles BLDC stator.







Fan Motor Stator Winding Machine Advantages:





Basic flyer winding one by one slot



Easy to adjust and operate,



dedicated machine for Model motors stator





Common Slot no. range



2 to 24slots





Fan Motor Stator



6 slots, 12 slots









Fan Stator Winding Machine Parameter:



Wire diameter: 0.10~0.60mm



Operation option: Auto



Automatic winding, automatic indexing, automatic winding arranging, automatic clamping and cutting



Stator slot no. : 2 to 24slots (other slots custom made)



Wire displacement: 60mm



Power suplly: AC220V 50/60Hz



Weight: about 350kgs



Dimension: 1260(L)x650(W)x1150(H)mm



Controller: CNC300







Double Station Stator Winding Machine For Out Runner Single Phase 3 Phase Fan Motor



Below samples and drawing are needed for machine manufacturing and commissioning:



1. Stator stack 5pcs without winding



2. Wound stator 1pc



3. Copper wire 1 roll enough for winding 10pcs stators



4. Stator lamination drawing and winding drawing







Please click below link to view video of new born fan stator winding machine

https://youtu.be/F5RtL6PYWu4
