Detailed Product Description
Cutting Material: Carbon Steel / Stainless Steel NAME: Laser Cutting Machine
Maximum Laser Power: 500W,750W,1000W,2000W Laser Wavelength: 1080NM
Machine Package: 4300mm*2150mm*1700mm Can Be Put In A 20'GP After Sales: Two Years Laser Guarantee
High Light:

brushless motor winding


motor winding machine

Electric Motor Prototypes Fiber Laser Cutting Machine Before Stacking

For a new design electric motor, manufacturers always need to produce several pieces prototypes to test the performance and check the motor function parameter to take a trial run.

In this situation, industry cnc laser for cutting of stator sheets is very suitable for producing the prototypes with any shape! Also the lamination sheet thickness is below 0.5mm, so it don't require much in investment a laser cutting machine for motor prototypes.


The fiber laser cutting machine is suitable for high-precision cutting of metal plates,steel material, and the mechanical arm can be used for three-dimensional cutting.
Compared with ordinary CO2 carbon dioxide laser cutting machine, it saves space and gas consumption,
has high photoelectric conversion rate, is a new product of energy saving and environmental protection, and is also one of the world's leading technology products.

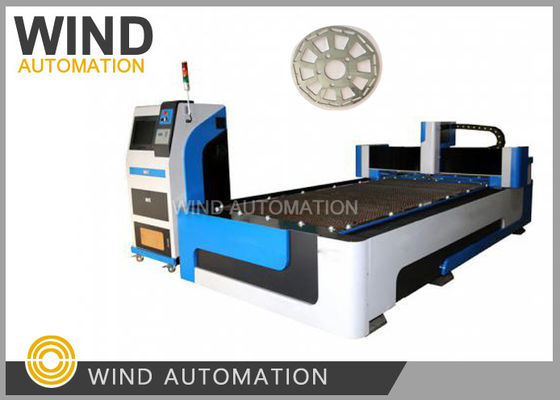

Electric Motor Prototypes 500W Fiber Laser Cutting Machine Before Stacking
Advantages of fiber laser cutting machines over CO2 laser cutting machines:
1) Excellent beam quality: smaller focusing spot, finer cutting lines, higher work efficiency and better processing quality;
2) Extremely high cutting speed: twice the same power CO2 laser cutting machine;
3) High stability: using the world's top imported fiber laser, the performance is stable, and the service life of key components can reach 100,000 hours;
4) Extremely high electro-optical conversion efficiency: The photoelectric conversion efficiency of the fiber laser cutting machine is about 30%, which is 3 times higher than the CO2 laser cutting machine, energy saving and environmental protection;
5) Very low cost of use: the power consumption of the whole machine is only 20-30% of the same CO2 laser cutting machine;
6) Very low maintenance cost: no laser working gas; fiber transmission, no need for reflective lenses; can save a lot of maintenance costs;
7) Convenient operation and maintenance of the product: optical fiber transmission, no need to adjust the optical path;
8) Super flexible light guiding effect: compact size, compact structure and easy flexible processing requirements.

Adopting 500W power fiber laser with international advanced technology, the precision CNC fiber laser cutting machine is a high-tech product integrating laser cutting, precision machinery and numerical control technology. It is mainly used for metal materials such as carbon steel plate, stainless steel plate,aluminum alloys’ cutting and forming.

Characterized by high speed, high precision, high efficiency, and high performance. It is the preferred cutting machine for the metal material processing industry.


Material Handled by Cutting Machine :

Specially used for cutting a variety of medium and thin metal plates, high quality cutting 0.5~10mm carbon steel plate, 0.5~4mm stainless steel plate, cutting aluminum alloy plate, galvanized plate, electrolytic plate, silicon steel, titanium alloy, galvanized sheet, Metal material etc.



Laser Cutting Machine Advantages

1. Low cost, low power consumption, can blow air to cut various metal sheets,

Production cost about 2.2USD~3.7USD/Hour

2. High cutting speed and efficiency, can cut 30 meters/Minutes

3. Good quality, small deformation, flat appearance and beautiful appearance handled

4. Servo motor and the guiding transmission mechanism ensure high cutting precision

5. With professional software, you can design all kinds of graphics or texts for instant

processing, flexible processing, simple and convenient operation.

6. High stability, using the world's top imported fiber laser, stable performance,

critical component life of up to 100,000 hours, laser maintenance-free.

7. Very low maintenance costs, no laser working gas, fiber transmission,

no need for reflective lenses, can save a lot of maintenance costs.

8. The product is easy to operate and maintain, and the optical fiber is transmitted

without adjusting the optical path.



Technical Data

Technical Item Technical Data
Laser wavelength 1080nm
Maximum laser power 500W
Pulse frequency 1~500Hz continuously adjustable
Aiming positioning Red light indicate
Work Table 3000mm*1500mm
X/Y Axis repeat positioning accuracy ±0.05mm
Support graphic format DXF,etc.(Autou CAD,Coreldraw software)
Power consumption of the whole machine ≤8KW
Power supply 3 Phase 380V,50Hz,60A
Dimension(L×W×H) 5000mm×2350mm×1800mm
Weight 2800KG








Cutting Data

500W Cutting Data
Material Thickness Speed(m/min) Pressure(MPA) Gas Cutting height
Stainless steel 0.5 >18 1 N2 0.6
1 8.4~12 >1.1 N2 0.6
2 1.8~2.4 >1.8 N2 0.6
3 0.84~1.2 >2.0 N3 0.6
Carbon steel 1 8.4~12 1 O2 1
2 3~4.2 0.6~0.8 O2 1
3 1.5~2.1 0.25~0.4 O2 1
4 1.2~1.5 0.15~0.2 O2 1
5 0.9~1.2 0.15~0.2 O2 1
6 0.72~0.96 0.1~0.2 O2 1


Cutting Machine Main Parts Brand

No Name Specification Q’ty Brand
1 Laser 500W Laser 1pc Ruike
2 Cutting head Fiber laser cutting head 1pc

Swiss Raytools





Machine Body

High-strength gantry steel structure

(Precision gantry milling machine processing)




Self developed

4 Machine beam 1pc Self developed Space Aluminum
5 Stainless steel armor shield 1pc Self developed
6 Electrical Part 1pc Schneider
7 Precision helical rack (X-axis, Y-axis) 2pcs Taiwan YYC
8 Linear guides (X-axis*2, Y-axis*2, Z-axis*2) 3pcs Taiwan HIWIN
9 Servo motor (Y axis * 2, X axis, Z axis) 4pcs Yaskawa
10 Precision reducer (Y axis * 2, X axis) 3pcs Shimpo
11 Proportional valve 1pc SMC
12 Precision chillers 1pc Lingke
13 Material collection 1pc Self developed
14 Gas circuit 1pc High pressure double gas path
15 High speed towline 3pcs Yanshan
16 Industrial control chassis 1pc Taiwan Industrial Control
17 Z-axis precision lifting slide 1pc Self developed
18 Automatic lubricating oil pump 1pc Taiwan Dongtai
19 Smoking dust blower 1pc Zhiou
20 Cabinet air conditioner 1pc Self developed
21 regulated power supply 1pc Leilang


CNC System

CNC System 1pc




24 cutting software 1pc
25 Capacitance Inductance Height Adjuster 1pc
26 Wireless handheld controller 1pc
