Motor Winding Machine Motorcycle Digitial Generator Stator Outrunner Segmented Outside Rotor Winder

China Motor Winding Machine Motorcycle Digitial Generator Stator Outrunner Segmented Outside Rotor Winder supplier
Motor Winding Machine Motorcycle Digitial Generator Stator Outrunner Segmented Outside Rotor Winder supplier Motor Winding Machine Motorcycle Digitial Generator Stator Outrunner Segmented Outside Rotor Winder supplier

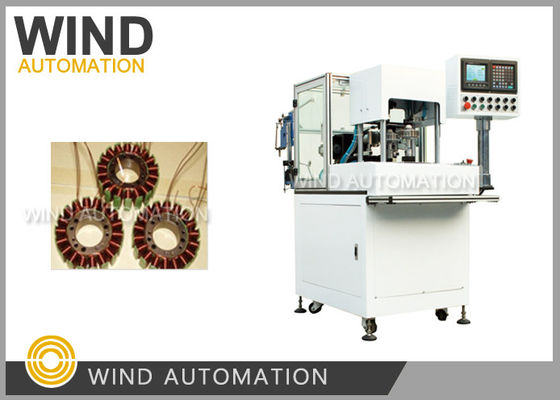

Large Image :  Motor Winding Machine Motorcycle Digitial Generator Stator Outrunner Segmented Outside Rotor Winder

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE for major parts
Model Number: WIND-1-TDS

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 45 working days
Payment Terms: T/T
Detailed Product Description
Condition: New Certificate: Main Parts CE
Working Station: Single Station With Two Rotation Heads Automation Type: Fully Automatic
Machine Color: White Or Per Customer Requirement After Sales: Engineers Available To Service Machinery Overseas
Highlight:

flyer winding machine

,

brushless motor winding

Motorcycle Digitial Generator Stator Outrunner Segmented Outside Rotor Winder WIND-1-TDS







Application:



Outside digital generator stators, motorcyle magneto rotor, washing machine, compressor motor and so on





Advantages:



1. Japan design, Made in China



2. Flyer winding Fast than Needle Winding



3. Wire displament neat and tidy



4. Two head ensure stator loading/unloading don't effect winding







Technical Data:



Wire diameter: 0.15~1.5mm



Stator ID: 15~260mm



Stator stack height:7~60mm



Turns no.:0~99999



Winding speed:0~1500rpm



Mode: Step/Auto



Airsource:5~7KG/cm2



Machine power: 2.5KW



1phase AC 220V 50~60Hz



Weight: about 600KGS



Dimension:1150*2350*1500mm







Main Configuration:





Control  system



Taiwan Hust H6D CNC system or PLC





Servo    system



Taiwan Delta servo system





Pneumatic system



Airtac cylinder









Please click below picture to view video

Motor Winding Machine Motorcycle Digitial Generator Stator Outrunner Segmented Outside Rotor Winder
