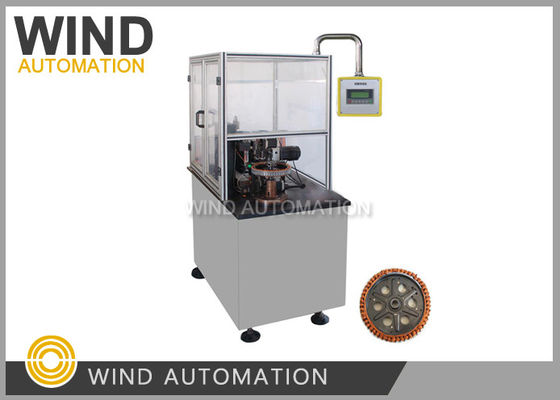

Electric Bicycle Hub Motor Wheel Motor Winding Machine BLDC Engine E-Bike Muti Coils

China Electric Bicycle Hub Motor Wheel Motor Winding Machine BLDC Engine E-Bike Muti Coils supplier

Large Image :  Electric Bicycle Hub Motor Wheel Motor Winding Machine BLDC Engine E-Bike Muti Coils

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE for major parts
Model Number: WIND-HMW-1M

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 45 working days
Payment Terms: T/T
Detailed Product Description
Condition: New Certificate: Main Parts CE
Working Station: Single Station Motor Application: In Wheel Motor
Automation Type: Fully Automatic Winding, Arraying, Cutting Machine Color: White Or Per Customer Requirement
After Sales: Ngineers Available To Service Machinery Overseas
High Light:

brushless motor winding

,

motor winding machine

Electric Bicycle Hub Motor Wheel Stator Winder BLDC E-Bike Muti Coils Winding WIND-HMW-1M







Application:



Electric bike, hub motor, wheel motor, outrunner motor, BLDC Engine







Advantages:



1. Three axis servo system,the winding,indexing,arraying are controlled by Mitsubishi servo motor



2. Flyer winding Fast



3. Big outside stator covering outside stator diameter 198mm,266mm



4. Constant torque servo motor, constant tension







Technical Data:



Stator Slots: No requirement



Stator Outer Diameter:198mm, 226mm,262mm



Winding Way:



Usually 198mm(7.8inch in wheel motor) OD is 51slots, winding way 3-3-3-4-4

They are Three - phase Y - type connection , Two sine wave,

insulation paper's thickness is 0.18~0.20mm



Armature Stack height:14-30mm



Wire Diameter: 0.3mm- 0.6mm



Number of Wires:1-13pcs



Air Source Pressure:0.4-0.7MPa



Power Supply Voltage:3 phases 380V±10% 50Hz



Power :about 3KW







Main Configuration:





Control  system



Japan Mitsubish PLC





Servo    system



Japan Mitsubish servo system





Tension system



Constant torque servo motor, constant tension









Question and Answer:



1. How the winding machine do the indexing: manually or automatically?



    Automatically with Mitubishi servo device



2. How the stator is fixed during winding process?



    Manually load on stator to the shaft and press with cover



3. What range of diameters of copper wire can work your machine (minimum and maximum)?



    0.3mm to 0.51mm



4. Which is the range of stacking lengths the winding machine can work?



    Standard wheel motor winding machine hub motor stator stack height 10mm~30mm,



    20mm~50mm (custom made)



5. The winding process is automatic or manual?



    Automatically with Mitubishi servo device



6. Is it possible to press and compact the wire copper during or after winding?



    Compact the wire after winding process with a separate machine



7. Does the machine any limitation in the dimension of the width of the open slot?



    Min. Open slot width>1.8mm, in China hub motor winding slot open width usually is2mm, 3mm



8.What is the height of the machine on the work area of the operator?



    Winding machine operation height 750mm



9. Are there the machine any sensors to check if the wiring is correct? (e.g. sensor to the



    check if the wire is broken)?



    Machine pause and alarm if wire broken



10. Do you have machines to do the testing the wheel motor after winding?



    Yes, separate testing machine



11. How you put the part on the machine before and after winding?



    It's a heavy wheel motor about 15 kg



    We didn't handle so heavy stator, Opearter load/unload staotr manually under 5KGS



    For example, a 198mm OD wheel motor stator weight around 2KGS







Please click below picture to view video



Electric Bicycle Hub Motor Wheel Motor Winding Machine BLDC Engine E-Bike Muti Coils
