Wire Taping Motor Stator Winding Machine Muti Slots Needle Winder Fully Automatic

Certification
Good quality Needle Winding Machine for sales
Good quality Needle Winding Machine for sales
We trust you and have very good references of you from our Shanghai colleagues

—— Olayo Delgado

We are very happy with the machines!

—— Efrain.Alvarado

I'm Online Chat Now

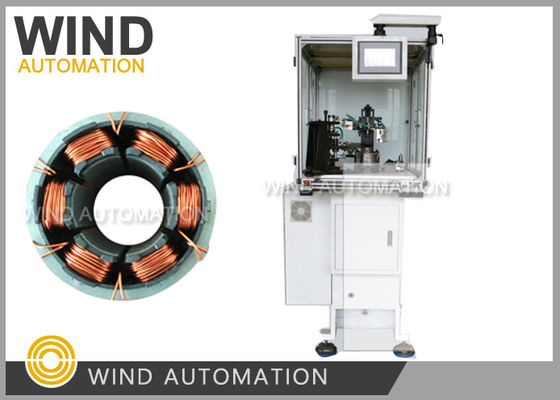

Wire Taping Motor Stator Winding Machine Muti Slots Needle Winder Fully Automatic

China Wire Taping Motor Stator Winding Machine Muti Slots Needle Winder Fully Automatic supplier

Large Image :  Wire Taping Motor Stator Winding Machine Muti Slots Needle Winder Fully Automatic

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-2C-TSM

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Pallet
Payment Terms: T/T
Detailed Product Description
Stator Type: BLDC Stator 6poles, 9 Poles, 12poles Winding Way Of StatorCertificate: 3Phase Motor U V W Same Winding Way
Working Station: Single Station Three Needles Automation Type: Fully Automatic
Machine Color: White Or Per Customer Requirement After Sales: Engineers Available To Service Machinery Overseas
High Light:

brushless motor winding

,

motor winding machine

1Minutes/PC China Automatic BLDC Motor Stator Winding Machine Inner Winder WIND-2C-TSM







Stator Winding Machine Application:



Air conditioning compressor, Refrigerator compressor which can be wound by 3 needles at same time.



6poles, 9 poles, 12 poles or 18poles Three phase Brushless Motor Stator 3Phase ABC winding way same.







Stator Winding Machine Advantages:



Mechanical movement of



nozzle as below picture



showed



Nozzle driven by cam device which winding the turns and then move



wire diameter distance to do the arraying to achieve high slot filling



rate, Stator is stationary during the winding which don't hit the nozzle.





Wire Gauge



Wide copper wire adaption  range from 0.08~1.2mm (AWG17~AWG39)



especially suitable for winding thick wire diameter around 0.8mm (AWG20)





One station



Three nozzles winding at same time act as a three station stator winder



and at same time one station stator winder don't have synchronization



issue and acquire a smart machine which don't acquire much space.









Stator Winding Machine Parameter:



Wire diameter:0.08~1.2mm (AWG17~AWG39)



Stator ID:15~65mm



Core length:7-110mm



Turns No.0-99999



Operation option: stepping/Auto



Stator poles: 6 poles, 9 poles, 12 poles,18poles (Customized)



Air pressure:5~7kg/square centi-meter



Power:2KW, AC220V 50/60Hz



Weight: about 450kgs



Dimension: 1600(L)x1100(W)x1400(H)mm







The automatic brushless stator winding machine series WIND-TSM is suitable for the winding of various



types of brushless motor coils. The enameled wire is directly wound on the coil core. Compared with the



traditional method of stator coil winding and windings embedding method, it saves the cost of the



enameled wire and increases the number of coils (related to electric motor slot filling rate).



The magnetic flux increases the power of the motor. This machine WIND-TSM series can automatically



complete the winding, indexing, arraying, cutting and other processes. The operator only needs to take



the work of picking and placing the stator, which reduces the labor intensity of the operator and achieves



automation. In addition, the machine has a significant functional feature. The copper wire nozzles are



moving according to the setting parameter, so that the wound wire package is compact, neat and nice



looking.









Parts list BLDC Motor Stator Winding Machine WIND-2-TSM

Parts

Name

Spec.

Q'ty

1

Spindle belt

HTD8M-776

1pc

2

Arraying belt

HTD8M-624

1pc

3

Belt

HTD5M-825

1pc

4

Fuse

RT18-32 2A

2pcs

5

Fuse

RT18-32 10A

2pcs

6

Magnetic switch

AL-11RL-02

1pc

8

Ceramic wheel

∮4

1pc









Tools:







1

Allen wrench

8pcs

1Set

2

Open end wrench

13-16mm

1pc

3

Word screwdriver

4inches

1pc

4

Phillips screwdriver

4inches

1pc

5

Wrench

8pcs

1Set

6

Tool box



1pc

7

Diagonal pliers



1pc









Custom part
