Stator Winding Machine Estatores 2 Pole Field Coil Fully Automatical Custom Made

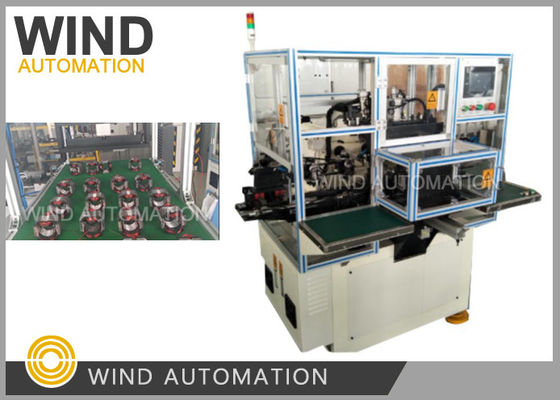

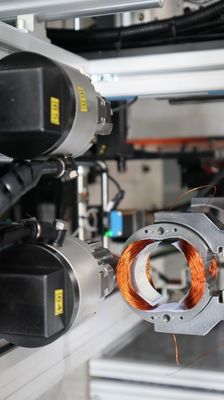

Fully Automatic Stator Winding Machine WIND-ASW-4

Operation process:

Operator load the 4 stators on left side, press start button, machine begin to wind automatically,

Meanwhile, during the machine is winding, operator load the other 4 stators on right side,

Machine finish the previous 4 stators winding and do the next 4 stators winding,

Left/Right side Alternate Loading/Unloading

Machine dimension around: 1.5M(from left to right) * 2.4M(from front to back)*1.8M

Main data:

PLC: Japan Mitsubishi

Main Motor: Local Brand 3phase AC Motor
Touch screen: Weinview

Cylinder: Airtac

Valve:SMC

Tensioner: Mechanical tensioner

Technical Parameter:
Wire diameter range: 0.2~1.0 mm
Min stator inner diameter: 30 mm
Max stator ourside diameter: 120mm
Air supply pressure: 4~6 Kg/cm2
The machine total power: 4.0 KW
Voltage: three phase AC 380V 50/60 Hz
Weight: 1100 Kg

For stator  have different stack height, most coils is 274turns,AWG25,

The four station fully automatic stator winding machine WIND-ASW-4

can produce 200pcs per hour,

Materials needed  for trail run

1 Stators with different height 20pcs each

2 Wires 2 bucket each

3 Formed paper 300pcs each

4 Wound stator 1pc each for reference

You don't have to send all types,

and could choose the typical stators which with highest slot filling rate,

different stack height and with different wire size for trial

2 stations stator winder WIND-ASW-2

3 stations stator winder  WIND-ASW-3

4stations stator winder   WIND-ASW-4

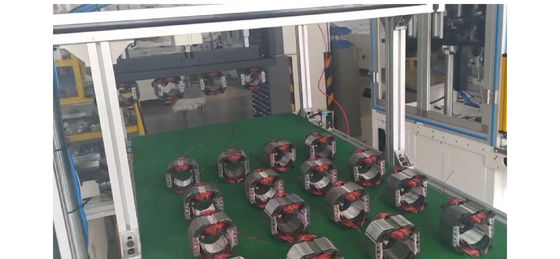

According to the output per day of your stator, stator winding machine running in customer's plant

https://youtube.com/shorts/543GxkgVssE?si=1v08oPDaODMcPUz4

Application:

Two Poles Inslot Stator covering mixer, grinder, power tool ,vacuum cleaner filed coil winding.

Competitive Advantages:

1. Fully automatical stator winding machine,Automatically load the tooling, clamp the wire

2. Automatically winding for high slot filling rate two pole stators

3. Easy Operation, the operator only need to load stator on fixture and unload wound stator

3. Very popular for high volum output motor manufacturers

Parameter:

Stack height 10-70mm

Stator ID 20-60mm

Stator OD 50-130mm

Stator poles No. 2

Wire diameter 0.15-1.3mm

Lubrication mode: continuous lubrication oiling machine

AC380V, 50/60Hz, 4.5KW, air pressure 57kg/cm2

About 1200kgs, 1500 x 2100 x 1650mm

NCM No / HS Code:8479811000

Please click below picture to view stator wider video
