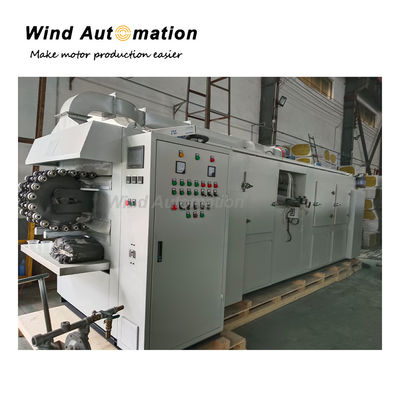

WIND-ZDG Motor Stator Rotor Varnish Dipping Machine

Large Image : WIND-ZDG Motor Stator Rotor Varnish Dipping Machine

Product Details:

Place of Origin:	China
Brand Name:	WIND AUTOMATION
Model Number:	WIND-ZDG

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	Bare package put in a 20'GP container
Delivery Time:	60 working days
Payment Terms:	T/T

Contact Now

Detailed Product Description

Condition:	New	Armature Insulation:	Armature Trickling/ Roll And Dip
Rotor Size Related To Machine:	Armature Shaft Length, Armature OD,stack Height	Machine Length:	Is Related To Armature Size,curing Time And Output Requirement
Power Source:	Electricity	After Sales:	Machine Almost No Need Maintenance

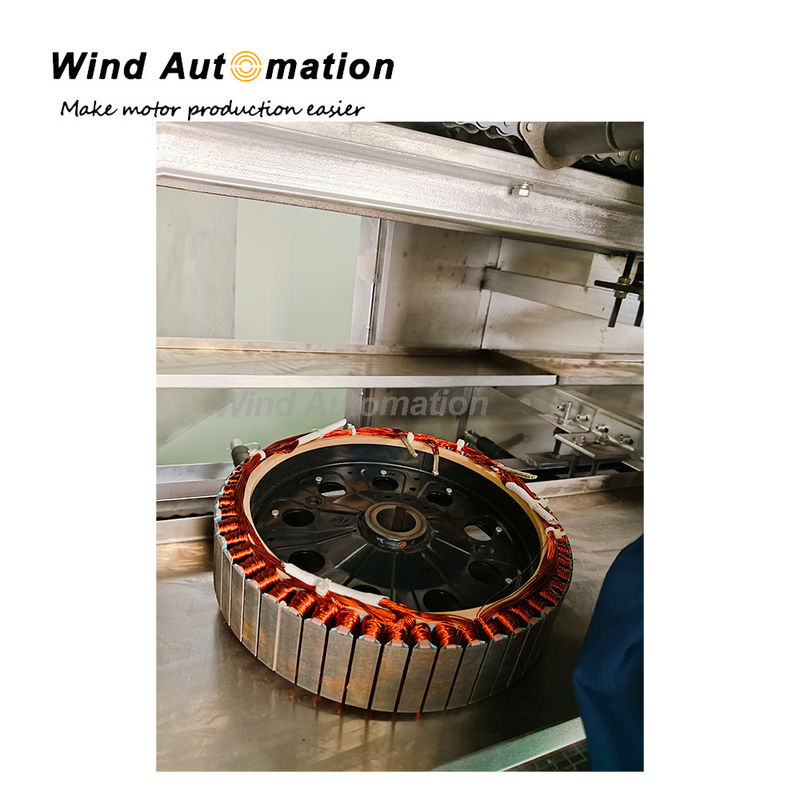

Motor Stator Rotor Varnish Dipping Machine WIND-ZDG Dip Varnishing Series

This type rotor varnish trickling machine is mainly used for motor rotor coil insulation automatic processing. Except for manually loading and unloading, the entire process is fully automated so as to guarantee product consistency and the quality for mass production.

(1) Specification

Working position	124×2
Position pitch	76 mm
Heating time	≤45min
Tunnel working temperature	0~160ºC
Pitch time	0~10 adjustable
Power	28 KW
Dimension	4900×1600×2100 mm
Weight	3.5 T

(2) Application
This machine has a wide range of application, suitable for various kinds of rotors, such as starter motor, hybrid motors, home appliance motors, pump motors, vacuum cleaner motors, power tool motors, series motors, vacuum cleaner motor.

(3) Features
High quality level of the varnishing process
Environment friendly
Heating time, pitch time and temperature can be set
Can be customized accordingly
Mass production
Fully automatic working cycle after loading of the armature
High efficiency, automation and productivity
