Big Frame Stator Varnish Trickle Impregnation Machine Dipping Depth Above 300mm

China Big Frame Stator Varnish Trickle Impregnation Machine Dipping Depth Above 300mm supplier

Large Image :  Big Frame Stator Varnish Trickle Impregnation Machine Dipping Depth Above 300mm

Product Details:

Place of Origin: China
Model Number: WIND-ZCJ

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Bare package put in a 20'GP container
Delivery Time: 60 working days
Payment Terms: T/T
Detailed Product Description
Condition: New Stator Frame Size: Above 112
Dipping Method: Varnish Dipping Tank Stay Or Move Tank Movement: Screw Rod
Power Source: Electricity Or Diesel After Sales: Machine Almost No Need Maintenance
High Light:

vacuum drying oven


impregnation line

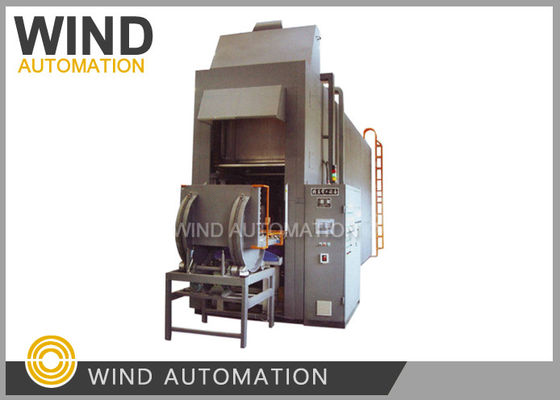

Big Frame Stator Varnish Automatic Immersion Machine Dipping Depth Above 300mm WIND-ZCJ






Stator varnish machine composed of machine body, water cooler and varnish supply tank. It is mainly


applied to stator winding insulation treatment for fractional horsepower motor and industrial Y series motor


which is below frame size 132.


Dipping time depends on varnish density.


Water pump dipping time usually is 2 minutes , and few minutes per cycle.



1. Water-based and solvent-based varnishing by cold dipping method.


2. Including dipping, holding, curving and ventilation steps.


3. Collection of dripping lacquers in the post-immersion stage and recirculation to the tank, including the


   flue system required for in-kiln emission collection and discharge.


4. Including basket and delivery vehicle structures in suitable structure to feed the stator to process.


5. Oven tube resistance, sufficient number of circulation fans.


6. Includes oven safety covers.


7. Stator varnish machine have an integrated process control system with operator panel which is


    userfriendly user-interface software program that can follow up and control such as program loading,


    temperature monitoring, alarm setting, PID & Limit temperature setting, PLC program and computer


    module to follow process parameters.


We produce stator varnish machine in electricity power,diesel power or gas, It has two types mechanism
in the varnish area:
1. Varnish tank goes up and down which is driven by the screw rod
2. Varnish tank fixed and the chain goes down and up
Situation 1 is suitable for stator with dipping time requirement, suppose the varnish dippin time is 2
minutes and pitch time is 5 minutes, stator don't need to stay inside the varnish tank for 5 minutes

In situation 2, the varnish tank don't move and don't need transmission, no drive needed.
