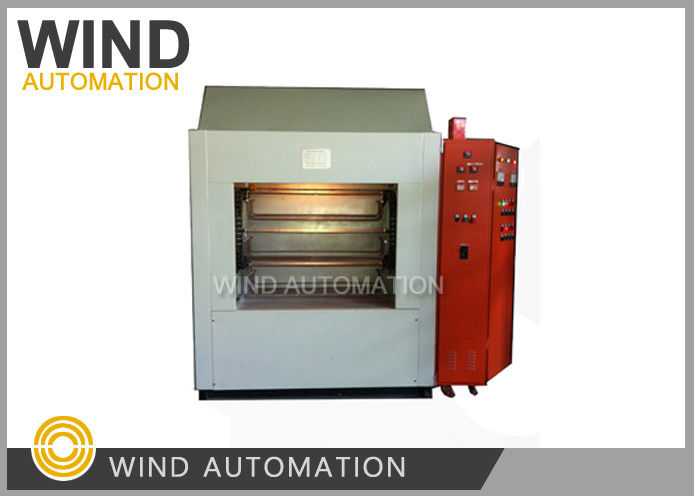

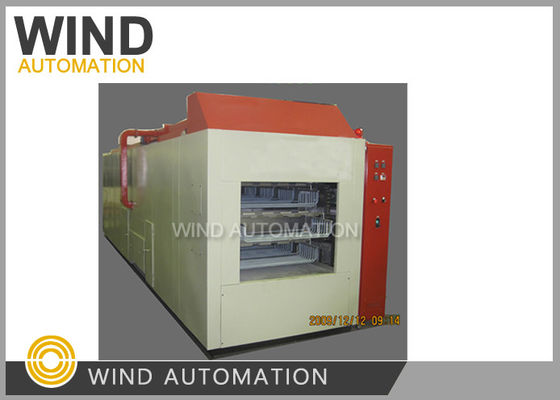

Small Frame Stator Varnish Impregnation Machine Dipping Depth Below 300mm WIND-ZCJ
Stator varnish machine composed of machine body, water cooler and varnish supply tank. It is mainly
applied to stator winding insulation treatment for fractional horsepower motor and industrial Y series motor
which is below frame size 132.
Automatic immersion machine is suitable for all types of industrial motors and fractional horsepower
motorstator winding insulation treatment. Such as: industrial electric motors, household appliances and
other motorstator, transformer coil winding insulation immersion treatment. In addition to the entire
production processfully automated workpiece loading and unloading outside. Workpiece at atmospheric
pressure by setting thetechnical parameters, automatic coil winding of the preheating, varnish, gel curing
process. Automatedproduction methods, to ensure the workpiece processed by the constant insulation
Insulated handle the entire process automatically immersed with the original compared to the
traditionaldipping, the production efficiency is greatly improved, compatible with other processes to
achieve the motorproduction line operations.
Impregnating even after the film, rub the paint process can be saved, thus saving insulating paint,
solvents and hours of labor, and greatly reducing the labor intensity.
The entire production process, process requirements identified, each station of all processes, all
theconditions remain the same, the same conditions to ensure product consistency.
Improve the quality of impregnation, immersion to achieve a stator, the commonly used insulating paint
dryingsaves energy and raw materials, and can shorten the production cycle at the same time greatly
improve the operator"s working environment.
Equipment, heating energy: conventional electric heating, the conditions can be customized according to
customer energy fuel type, gas type (yao natural gas) products.
Immersion: lift, down-type; control systems: conventional control system with human-machine interface
type(touch screen) control system.
In situation 2, the varnish tank don't move and don't need transmission, no drive needed.
