14 Poles Motor Winding Machine For New Energy Car Inner Segments Stator
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | New | Stack Height: | Below 30mm (1.18'') |
|---|---|---|---|
| Working Station: | Two Or Four | Max Wire: | Thin Wire |
| Automatic Type: | Fully Automatic Can Handle Thin Wire | Machine Color: | White Or Per Customer Requirement |
| Winding Speed: | 1000RPM To 1200RPM | After Sales: | Engineers Available To Service Machinery Overseas |

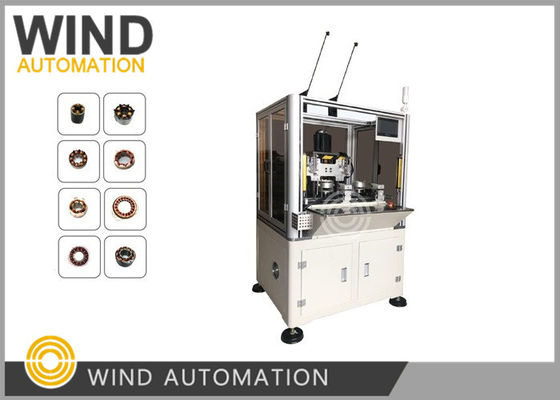

14 Poles Motor Winding Machine For New Energy Car Inner Segments Stator WIND-T1000
(1) Application
New Energy Car Stator With Thin Wire, Small Stack Height
(2) Advantages
High efficiency and stable smart stator needle winding machine
Crazily fast 1000RPM to 1200RPM
(3) Parameter
| Working station | 2 or 4 |
| Stator OD | 20~100mm |
| Stator ID | 12~130mm |
| Stack length | 5~30mm |
| Wire diameter | 0.08~1.0mm (suitable for thin wire and small stator) |
| Spindle spacing | 155mm |
| Drive servo | 3000W 1 set |
| Indexing servo | 2000W 2 sets |
| Arraying servo | 750W 2 sets |
| Air source | 5 to 7 kg/cm |
| Power supply | 380V 50HZ 15A |
| Dimension | 1800x850x1700mm |
| Weight | 680KG |
Below samples are needed for machine manufacturing and commissioning:
1. Stator stack 5pcs without winding
2. Wound stator 1pc
3. Copper wire 1 roll enough for winding 15pcs stators
Please click below video to watch machine working
