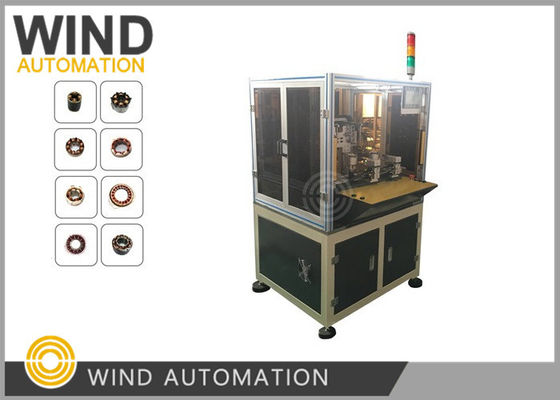

1000RPM Automatic Winding Needle Winder For Square Stator 16 Slots Aluminum Filed

China 1000RPM Automatic Winding Needle Winder For Square Stator 16 Slots Aluminum Filed supplier

Large Image :  1000RPM Automatic Winding Needle Winder For Square Stator 16 Slots Aluminum Filed

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-T1000

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Pallet
Delivery Time: 45 Working days
Payment Terms: T/T
Detailed Product Description
Condition: New Stack Height: Below 30mm (1.18'')
Working Station: Two Or Four Max Wire: Thin Wire
Automatic Type: Fully Automatic Can Handle Thin Wire Machine Color: White Or Per Customer Requirement
Winding Speed: 1000RPM To 1200RPM After Sales: Engineers Available To Service Machinery Overseas

1000RPM Automatic Winding Needle Winder For Square Stator 16 Slots Aluminum Filed WIND-T1000





(1) Application



New Energy Car Stator With Thin Wire, Small Stack Height







(2) Advantages



Crazily fast 1000RPM to 1200RPM





(3) Parameter



Wire diameter:0.08 to 1.0mm (suitable for thin wire and small stator)



Stator ID: 12 to 130 mm



Stack height: 5 to 30mm



Winding motor: Servo motor Panasonic 3000W 1pc



Arraying motor: Servo motor Panasonic 2000W 2pcs



Indexing motor; Servo motor Panasonic 750W 2pcs



Speed: 600RPM to 1200 RPM



Air pressure:5~7kg/square centi-meter



Power:AC380V 50/60Hz



Weight: about 480kgs



Dimension: 1800(L)x850(W)x1600(H)mm







Below samples are needed for machine manufacturing and commissioning:



1. Stator stack 5pcs without winding



2. Wound stator 1pc



3. Copper wire 1 roll enough for winding 15pcs stators
