Fan Motor Stator Flyer Winding Machine For Brushless Outrunner 2/4/6 Poles Motor

China Fan Motor Stator Flyer Winding Machine For Brushless Outrunner 2/4/6 Poles Motor supplier

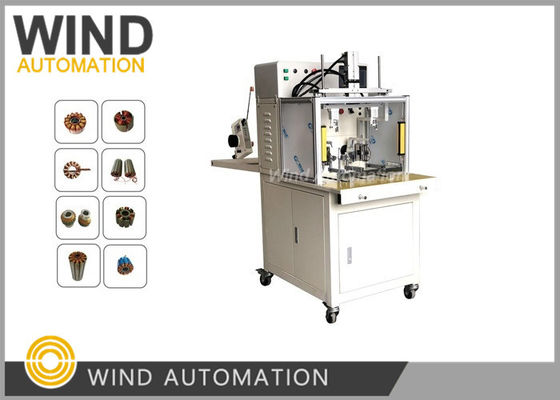

Large Image :  Fan Motor Stator Flyer Winding Machine For Brushless Outrunner 2/4/6 Poles Motor

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-HMW-205S

Payment & Shipping Terms:

Price: Negotiable
Packaging Details: Pallet
Payment Terms: T/T
Detailed Product Description
Condition: New Certificate: CE
Working Station: Single Station Winding Speed: Max. 1500RPM According Wire Gauge
Automatic Type: Fully Automatic Machine Color: White Or Per Customer Requirement
After SalesWinding Speed: Engineers Available To Service Machinery Overseas

Fan Motor Stator Flyer Winding Machine For Brushless Outrunner 2/4/6 Poles Motor WIND-HMW-205S







Application:





Model motors



Flying Models, Airplane Aircraft Helicopter Motor stator





Outrunner motors



Fan motor stator, Ventilator ,Ceiling fan stator, Toy motor





Wheel motor



Skateboard Wheel Motor Stator, Electric Scooters,Auto balance scooter,



Self balanced vehicles motor stator





Big size outside stator











Advantages:





Basic flyer winding one by one slot



Easy to adjust and operate,



dedicated machine for Model motors stator





Common Slot no. range



2 to 24 slots





Muti wires handled



30pcs wires









Parameter:



Wire diameter: 0.10~0.60mm



Operation option: Auto



Automatic winding, automatic indexing, automatic winding arranging, automatic clamping and cutting



Stator slot no. : 2 to 24slots (other slots custom made)



Wire displacement: 60mm



Power suplly: AC220V 50/60Hz



Weight: about 350kgs



Dimension: 1260(L)x650(W)x1150(H)mm



Fan Motor Stator Flyer Winding Machine For Brushless Outrunner 2/4/6 Poles Motor

Stator OD 0.433'',Height 0.157'', wire size AWG36, 40turns







Characteristics of brushless motor:





1. Size



If you choose brushless DC motor, you will see many similar models, such as 2216, 2814 and so on. The



top two are stator outer diameter (mm) and the last two number is stator height (mm). The bigger the



outer diameter and the height of the stator, the greater the core of the stator and the more the number of



winding turns , the bigger power of the motor. Of course, the larger of motor stator size, the greater the



power, but the heavier the weight.


If a motor is 2216, the stator's outer diameter is 22mm, and the stator height is 16mm. The stator outer



diameter and stator height are proportional to the power of the motor, and obviously the 2218 is higher



than the 2212 of the motor stator, and the power of 2218 must be bigger than 2216. The size of the model



can see the power two of the two motor with same OD, but this is generally for the same stator diameter



and different height. or same stator height different stator diameter.If the brushless motor stator height



and stator outer diameter are not same as ,it is difficult to compare withmodel.



It should be noted that this dimension refers to the stator itself, not the size of the motor, the thickness of



the motor shell, the shape of the heat dissipation, the height of the base and so on, which all affect the



external size of the motor, so the judgement of the power using the stator size is standard and reliable



than that of the external size.





2. Number and pole number of motor slots



1) The number of slots (N): the number of grooves in the stator core. A brushless motor is a three-phase



    motor, so the number of grooves is a multiple of 3.



2) The number of poles (P): the number of magnetic steel on the stator, the magnet must be used in pairs



    of the north and south poles, and the number of poles must be even.



    The slot number and pole number of the motor are directly written as the number of slot number N pole



    number P, such as 12P14N, which is the meaning of the 14 pole of the 12 slot.



3) Characteristics of the number of slots and the number of poles



    a. The number of slots (N) and the number of poles (P) are inversely proportional to the maximum



    speed,



    the smaller the number of slots (the number of poles), the higher the best speed of the motor.



    For example, the highest speed of 9N12P is higher than that of 12N14.



    b. In the same case of the number of slots(N), the number of poles (P) is proportional to the torque,



    the greater the number, the greater the torque.



    c. Under normal circumstances, the slot number (N) and pole number (P) increases, the sense of



    frustration (the smaller motor will feel a sense of resistant frustration when the motor is not charged with



    the hand rotating motor), the theory of motor vibration will be less, but because the slots are hard to do



    active balance.





3. KV



The KV value of the brushless motor is defined as the speed / V, which means that the input voltage is



increased by 1 volts (V), the rotational speed (turn / minute) of the brushless motor is increased. From



this definition, voltage and motor idling speed follow a strict linear proportional relationship and are



constants, regardless of the relationship between the motor's working voltage, voltage and speed.







Below samples and drawing are needed for machine manufacturing and commissioning:



1. Stator stack 5pcs without winding



2. Wound stator 1pc



3. Copper wire 1 roll enough for winding 10pcs stators



4. Stator lamination drawing and winding drawing







Please click below picture to view video
