Automated Winding Process Of Building Electric Motors Stators With 12 Slots

China Automated Winding Process Of Building Electric Motors Stators With 12 Slots supplier

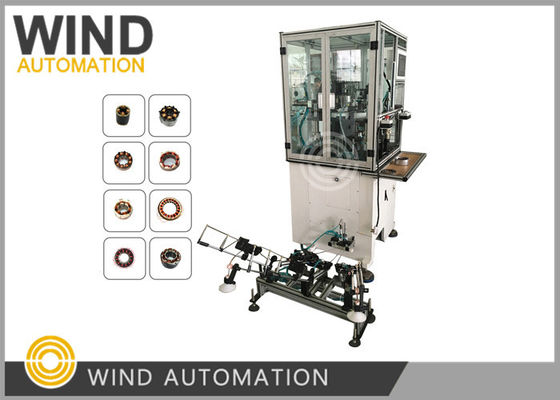

Large Image :  Automated Winding Process Of Building Electric Motors Stators With 12 Slots

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-3A-TSM

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Pallet
Payment Terms: T/T
Contact Now
Detailed Product Description
Stator Type: BLDC Stator 6poles, 9 Poles, 12poles Winding Way Of StatorCertificate: 3Phase Motor U V W Same Winding Way
Working Station: Single Station Three Needles Automation Type: Fully Automatic
Machine Color: White Or Per Customer Requirement After Sales: Engineers Available To Service Machinery Overseas

An Automated System Of Building Electric Motors Stators With 12 Slots





Stator Winding Machine Application:



An Automated System For Winding Process Of Building Electric Motors Stators With 6poles, 9 poles, 12 poles or 18poles

Three phase Brushless Motor Stator 3Phase ABC winding way same.

Air conditioning compressor, Refrigerator compressor which can be wound by 3 needles at same time.











Stator Winding Machine Advantages:





Mechanical movement of



nozzle as below picture



showed



Nozzle driven by cam device which winding the turns and then move wire



diameter distance to do the arraying to achieve high slot filling rate,



Stator is stationary during the winding which don't hit the nozzle





Wire Gauge



Wide copper wire adaption  range from 0.08~1.2mm (AWG17~AWG39)



especially suitable for winding thick wire diameter around 0.8mm (AWG20)





One station



Three nozzles winding at same time act as a three station stator winder



and at same time one station stator winder don't have synchronization



issue and acquire a smart machine which don't acquire much space









Stator Winding Machine Parameter:



Wire diameter:0.08~1.2mm (AWG17~AWG39)



Stator ID:15~65mm



Core length:7-110mm



Turns No.0-99999



Operation option: stepping/Auto



Stator poles: 6 poles, 9 poles, 12 poles,18poles (Customized)



Air pressure:5~7kg/square centi-meter



Power:2KW, AC220V 50/60Hz



Weight: about 450kgs



Dimension: 1600(L)x1100(W)x1400(H)mm







The automatic brushless stator winding machine series WIND-TSM is suitable for the winding of various



types of brushless motor coils. The enameled wire is directly wound on the coil core. Compared with the



traditional method of stator coil winding and windings embedding method, it saves the cost of the



enameled wire and increases the number of coils (related to electric motor slot filling rate).



The magnetic flux increases the power of the motor. This machine WIND-TSM series can automatically



complete the winding, indexing, arraying, cutting and other processes. The operator only needs to take



the work of picking and placing the stator, which reduces the labor intensity of the operator and achieves



automation. In addition, the machine has a significant functional feature. The copper wire nozzles are



moving according to the setting parameter, so that the wound wire package is compact, neat and nice



looking.







Parts list BLDC Motor Stator Winding Machine WIND-3A-TSM
parts Name Spec. Q'ty
1 Spindle belt HTD8M-776 1pc
2 Arraying belt HTD8M-624 1pc
3 Belt HTD5M-825 1pc
4 Fuse RT18-32 2A 2pcs
5 Fuse RT18-32 10A 2pcs
6 Magnetic switch AL-11RL-02 1pc
8 Ceramic wheel ∮4 1pc

Tools:
1 Allen wrench 8pcs 1Set
2 Open end wrench 13-16mm 1pc
3 Word screwdriver 4inches 1pc
4 Phillips screwdriver 4inches 1pc
5 Wrench 8pcs 1Set
6 Tool box   1pc
7 Diagonal pliers   1pc

Custom part
1 Nozzle   1pc





Please click below picture to view video
