A Roll Dip Trickle Varnish System For Coating Rotors And Various Coils

China A Roll Dip Trickle Varnish System For Coating Rotors And Various Coils supplier

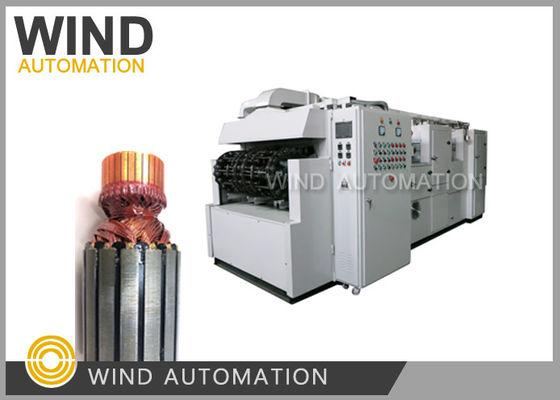

Large Image :  A Roll Dip Trickle Varnish System For Coating Rotors And Various Coils

Product Details:

Place of Origin: China
Model Number: WIND-ZDG

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Bare package put in a 20'GP container
Delivery Time: 60 working days
Payment Terms: T/T
Detailed Product Description
Condition: New Armature Insulation: Armature Trickling/ Roll And Dip
Rotor Size Related To Machine: Armature Shaft Length, Armature OD,stack Height Machine Length: Is Related To Armature Size,curing Time And Output Requirement
Power Source: Electricity After Sales: Machine Almost No Need Maintenance

A Roll Dip Trickle Varnish System For Coating Rotors And Various Coils WIND-ZDG


  • Specification
  • The main chain adopts special straight chain: the chain pitch = 76.2mm
  • Working station distribution: 120 working stations in total,15pcs loading & unloading stations, 25pcs preheating stations, 4pcs air cooling stations, 2pcs varnish dripping stations, 4pcs leveling stations, 15pcs low temperature gel stations, 39pcs curing stations, 15pcs cooling stations.
  • The fixture adopts Ø16 drill chuck, applicable for two model types armature.
  • Step 1 station once.Varnish dripping time and cycle time can be set and displayed.
  • The workpiece starts to rotate before vanishing dripping, and the speed is adjusted by the inverter. Varnish drips twice per workpiece in a row.
  • The varnish dripping part adopts a precision peristaltic pump, equipped with 4 sets of pumps (two pumps on both the left and right sides). The dripping flow can be adjusted.
  • The working temperature of the curing tunnel is adjustable (≤150℃). The insulation layer of the curing tunnel is 150mm, made of high-quality rock wool.
  • The electric heating device is equipped with hot air stirring fan. The heating tube is finned and has a long duration (normally 5 to 8 years). All the terminals are outside the machine, which is safe and reliable.
  • The temperature control adopts intelligent temperature control instruments with over-temperature alarm function, and can independently control each heating zone.
  • The equipment is equipped with a centrifugal exhaust fan, which performs exhaust and exhaust treatment on the varnish dripping area and the loading & unloading area.
  • Machine is controlled by PLC, and it can automatically complete all processes except for loading and unloading.
  • Power supply: three-phase four-wire system, AC380V/50Hz; total power is about 38Kw.



  • Main configuration
PLC Omron/Siemens (optional)
Touch screen Taiwan Weilun (7.5-inch color)
Temperature control instrument Hongkong Yudian (Xiamen)
Frequency converter Delta
Contactor/thermal relay Schneider
Solid State Relay Hangzhou Xizi
Knob/button/indicator Schneider
Peristaltic pump Wind Automation




  • Output estimation

Assuming that the cycle time is 90s in one step, the workpiece warm-up time ≈38min, gel ≈23min, and curing time ≈60min; If you work 10 hours a day, the machine can run 3.3 circles, but there is no output in the first circle, so

daily output = (3.3-1) circle × 120 stations × 2 sides = 550 pieces


If cycle time and working hours are changed, the output will change accordingly.


Machine shipment


1. Weight, 4Ton
2. Volume , Dimension around 5*1.5*2.1m (Usually we load it to 20GP container)
3. Hs code, 8514101000
