Inner Slot Brushless Motor Stator Needle Winding Machine Three Needles Per Time

China Inner Slot Brushless Motor Stator Needle Winding Machine  Three Needles Per Time supplier

Large Image :  Inner Slot Brushless Motor Stator Needle Winding Machine Three Needles Per Time

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-3A-TSM

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Pallet
Payment Terms: T/T
Detailed Product Description
Stator Type: BLDC Stator 6poles, 9 Poles, 12poles Winding Way Of StatorCertificate: 3Phase Motor U V W Same Winding Way
Working Station: Single Station Three Needles Automation Type: Fully Automatic
Machine Color: White Or Per Customer Requirement After Sales: Engineers Available To Service Machinery Overseas

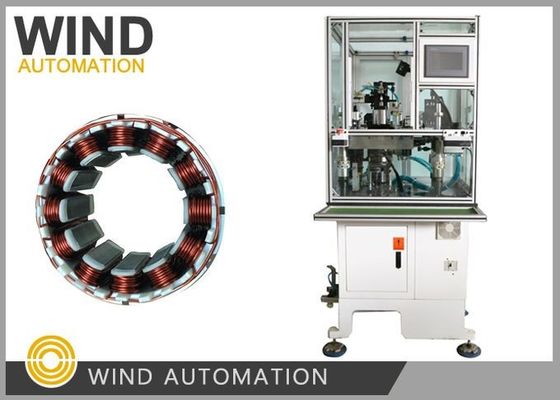

Inslot winding machine Inner Slot Brushless Motor Stator Needle Winding Machine  Three Needles Per Time



This inslot winding machine is designed to produce multi-poles 3phase stator with narrow slot width but high slot filling rate. It can synchronously wind 3 slots of one stator. Except for auto arraying, machine can do automatic winding, indexing, layering and terminating.



(1)Specification

Wire diameter 0.08~1.2mm
Stator ID 19~65mm
Stack length 7~110mm
Turn No. 0~9999
Movement Stepping/Auto
Slot number 6,9,12,18(customized)
Air source 5~7kg/cm3
Power 2KW
Power supply AC 220 V, 50/60HZ
Weight 750KG
Dimension 1600x1100x1400mm



(2)Application

suitable for various types stators with narrow slot width but high slot filling rate.



(3)Features

Synchronously wind 3 slots

Winding track in rectangle shape

Precision performance of needle winding

Fully programmable operation

Can meet high winding requirements

Quick change-over of tooling

Winding parameter adjustable according to different stators





(4)Machine configuration

Mitsubishi PLC

Touch screen

AIRTAC cylinder

Delta AC servo system and four spindle synchronous control unit

Lubrication system





(5) Information needed for this machine inquiry
It will be better if customer could send us detailed drawing including below information.
1. Stator drawing
2. Stator winding drawing
3. Winding distribution drawing
4. Other technical requirement
If possible, it will be better if customer can send us samples.



Tag: needle winding machine, inslot winding machine, BLDC winding machine, stator winding machine, BLDC motor stator winding machine







Parts list BLDC Motor Stator Winding Machine WIND-3A-TSM
parts Name Spec. Q'ty
1 Spindle belt HTD8M-776 1pc
2 Arraying belt HTD8M-624 1pc
3 Belt HTD5M-825 1pc
4 Fuse RT18-32 2A 2pcs
5 Fuse RT18-32 10A 2pcs
6 Magnetic switch AL-11RL-02 1pc
8 Ceramic wheel ∮4 1pc

Tools:
1 Allen wrench 8pcs 1Set
2 Open end wrench 13-16mm 1pc
3 Word screwdriver 4inches 1pc
4 Phillips screwdriver 4inches 1pc
5 Wrench 8pcs 1Set
6 Tool box   1pc
7 Diagonal pliers   1pc

Custom part
1 Nozzle   1pc
