How To Winding Electric Bike Motor Scooter With Stator Coil Winding Machine

China How To Winding Electric Bike Motor Scooter With Stator Coil Winding Machine supplier

Large Image :  How To Winding Electric Bike Motor Scooter With Stator Coil Winding Machine

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE for major parts
Model Number: WIND-HMW-1M

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Wooden case suitable for sea transportation
Delivery Time: 45 working days
Payment Terms: T/T
Detailed Product Description
Condition: New Certificate: Main Parts CE
Working Station: Single Station Motor Application: In Wheel Motor
Automation Type: Fully Automatic Winding, Arraying, Cutting Machine Color: White Or Per Customer Requirement
After Sales: Engineers Available To Service Machinery Overseas

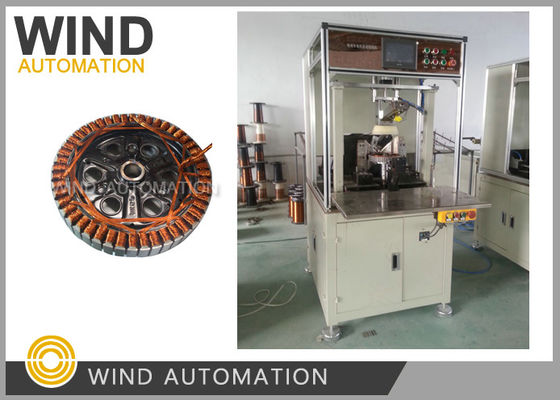

How To Winding Electric Bike Motor Scooter With Stator Coil Winding Machine WIND-HMW-1M





Application:



Scooter, Electric bike, hub motor, wheel motor, outrunner motor, BLDC Engine outside stator parallel wires winding







Advantages:



1. Hub motor winding passing rate 98% to 99%, means in hub motor production, only 1pc or 2pcs is allowed to fail



2. Self develop mechanical tensioner, one tension can handle serveral wires



3. The operator staff should be familar with operation and commissioing, have good sense of machinery,







Technical Data:



Stator OD 198mm, 207mm, 226mm,254mm,262mm Accoding to E-Bike voltage
Stator Thickness Min. 14mm Max. 35mm
Wire diameter 0.3mm to 0.6mm  SWG24, 0.56mm is common
Number of Turns 4 turns to 8 turns Stator coils winding turns accoding to power
Number of Slots No specified Normally 48slots to 54 slots
Number of Parallel wires 13 to 16 wires
Cycle time  About 5 minutes to 7 minutes per piece
Insulation paper thickness 0.18mm to 0.20mm  Also stator powder coating insulation method
Change over time 20 min Max including hardware and software
Winding way

Three - phase Y - type connection ,

Two sine wave

For example:For a 198mm OD(7.8inch in wheel motor) hub motor, stator slots is 51slots, winding way 3-3-3-4-4
Air Pressure 0.4-0.7MPa
Power Supply 3 phases 380V, 50Hz
Power about 3KW
Pass rate 98% to 99%  Production 100pcs, only 1pc or 2pcs allow not good
Production lead time 2 months





How To Winding Electric Bike Motor Scooter With Stator Coil Winding Machine



Main Configuration:





Control  system

China PLC





Servo    system



Japan Mitsubish servo system





Tension system



Constant torque servo motor, constant tension







Please click below picture to view video

Contact Details
Shanghai Wind Automation Equipment Co.,Ltd

Contact Person: Ms. Emily

Send your inquiry directly to us (0 / 3000)
