Generator Alternator Automobile Stator Coil Wave Winding And Insertion Machine

China Generator Alternator Automobile Stator Coil Wave Winding And Insertion Machine supplier

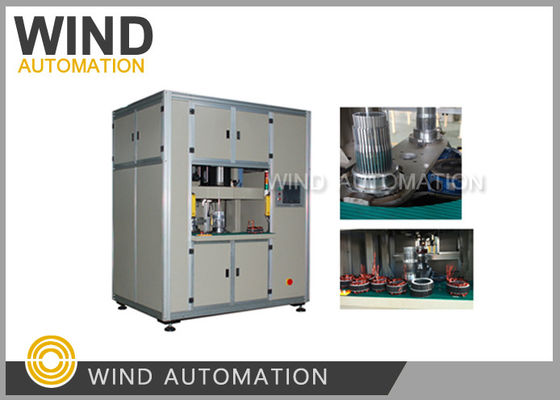

Large Image :  Generator Alternator Automobile Stator Coil Wave Winding And Insertion Machine

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: WIND-AGWI

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: 35 working days
Payment Terms: T/T
Detailed Product Description
Condition: New Winding Item: Auto Alternator Stator Wave Shape Winding
Working Station: Double Station Automation Type: Fully Automatic
Testing Item Content Display: Test Result Intuitive Display On Screen One By One Wave Winding: Putting Into Winding Transfer Former Automatically
Process: Automatic Wire Winding, Automatic Wire Embedding After Sales Service: Engineer Available For Oversea Service

Generator Alternator Automobile Stator Coil Wave Winding And Insertion Machine  WIND-AGWI





New energy automoblie motor stator coil winding machine is suitable for new energy, alternator, or generator stator to do coil winding. It will automatically wind the coil into the tooling. In normal case, a winding inserting machine will be needed. Otherwise, the coil inserting process should be done manually.

(1) Technical Data

Generator Alternator Automobile Stator Coil Wave Winding And Insertion Machine

(2) Application

Suitable for auto alternator stator wave shape winding automatic wire winding, automatic wire embedding and putting into winding transfer former automatically.



(3) Quick details of wave winding machine opearation



Servo motor control wire arraying and winding, pneumatically shaped to plum blossom, double work

stations automatic position changing, servo automatic wire embedding, automatically put into slot cover,

one work station for wave shape winding and push into wire embedding mould, another station for wire

embedding and put into slot cover, put paper inserted stator on the station manually, repeating operation,

PLC control, colorful touching screen, with press work/single step/automatic three kinds of work method,

high automation and efficiency.



(3) Machine main function and characteristic

  • Servo motor control wire arraying and winding, pneumatically shaped to plum blossom, double work
  • stations automatic position changing, servo automatic wire embedding, automatically put into slot cover
  • one work station for wave shape winding and push into wire embedding mould, another station for wire
  • embedding and put into slot cover, put paper inserted stator on the station manually, repeating operation
  • PLC control, colorful touching screen, with press work/single step/automatic three kinds of work method
  • High automation and efficiency.



Tag: new energy motor production machine, stator coil winding machine, alternator motor winding machine, wave winding machine
