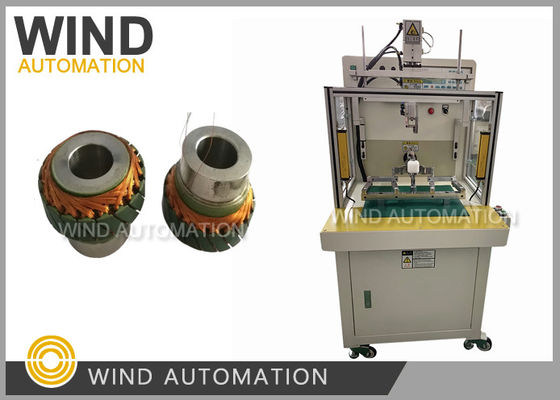

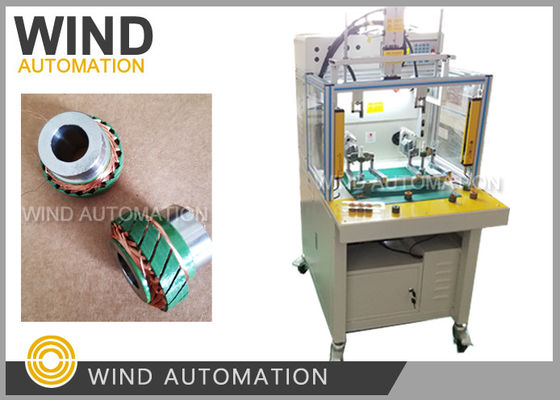

Rotary Encoder Resolvers Motor Rotor Stator Flyer Winding Machine For Electrical Car

China Rotary Encoder Resolvers Motor Rotor Stator Flyer Winding Machine For Electrical Car supplier
Rotary Encoder Resolvers Motor Rotor Stator Flyer Winding Machine For Electrical Car supplier Rotary Encoder Resolvers Motor Rotor Stator Flyer Winding Machine For Electrical Car supplier

Large Image :  Rotary Encoder Resolvers Motor Rotor Stator Flyer Winding Machine For Electrical Car

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Detailed Product Description
Winding Way: Flyer Winding Stator Lamination: Skew Stator Rather Than Straight Lamiantion
Motor Application: New Energy Car EV Motor: Rotary Encoder Resolvers

Resolvers Motor Stator Flyer Winding machine is dedicated machine for skew type electrical vehicle, hybric car and new energy motor



Parameter:

Wire diameter:0.1~0.7mm

Stator ID:15~65mm

Core length:7-100mm

Turns No.0-99999

Operation option: stepping/Auto

Air pressure:5~7kg/square centi-meter

Power:2KW, AC220V 50/60Hz

Weight: about 220kgs

Dimension: 1600(L)x1100(W)x1400(H)mm



Resolvers motor stator winding video

https://youtu.be/-G_6paSc-Ss



Resolvers are windely used in EV/Hybrid Cars, the skew resolvers outside stator flyer winding machine WIND-HMW-305D can get 1pc wound stator in a compact and efficient way.
The resolver wound in video mainly used in permanent magnet synchronous electric vehicle motor, In order to measure the electromotive force of the motor winding, two types of sensors can be generally arranged at the end of the motor shaft, one is a wound-type resolver and the other is a reluctance resolver.


The role of the rotary transformer in electric vehicles.
The resolvers(rotary transformer) mainly has the following two functions
1.speed sensing function

2. position sensing function, adjusting the standard zero position of the motor and sensing the rotor position of the motor at any time.

Rotary Encoder Resolvers Motor Rotor Stator Flyer Winding Machine For Electrical Car

You may also interest in Resolvers stator needle winding machine
