Flyer Stator Winding Machine For Pump Drone Bldc Motors Armature Outrunner Stator

China Flyer Stator Winding Machine For Pump Drone Bldc Motors Armature Outrunner Stator supplier
Flyer Stator Winding Machine For Pump Drone Bldc Motors Armature Outrunner Stator supplier Flyer Stator Winding Machine For Pump Drone Bldc Motors Armature Outrunner Stator supplier Flyer Stator Winding Machine For Pump Drone Bldc Motors Armature Outrunner Stator supplier

Large Image :  Flyer Stator Winding Machine For Pump Drone Bldc Motors Armature Outrunner Stator

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-HMW-205D

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: weight 300KGS, Dimension 860*1130*1640mm,
Delivery Time: 30 working days
Payment Terms: T/T
Detailed Product Description
Motor Type: Outside Stator, Rotor, Armature Winding Way: Flyer Winder Rather Than Needle Winding
Working Station: Double Station Winding Speed: Per Wire Gauge
Single Wire Or Muti Wires: Single Wire Or Muti Wires Controller: CNC300
Motor Winding: Pump,RC Model Aeroplane Motors Stator,Aircraft, Drone, After Sales: Engineers Available To Service Machinery Overseas
High Light:

flyer winding machine

,

motor winding machine

Flyer Winding Machine For Pump Drone BLDC Motors Armature Outrunner Stator WIND-HMW-205D







Stator Winding Machine Application:



Stator flyer winding machine winding outrunner BLDC motors stators such as



Model stator, Fan stator, Ceiling fan stator,



Toy motor,Skateboard Wheel Motor Stator , Big size outside stator,



Drone stator,Airplane ,Aircraft Helicopter Motor Outrunner Stator



RC model aeroplane motors







Flying Models Stator Winding Machine Advantages:



Winding type

CNC Flyer winding faster than needle winding



Smart machine easy to change tooling

A machine that do custom winding schemes to which you can test different kv values in your prototypes and low volume production runs.

A winding machine like the WIND-HMW-205D could save a lot of time from ordering custom winding scheme from a manufacturer.


Outrunner motors stator size

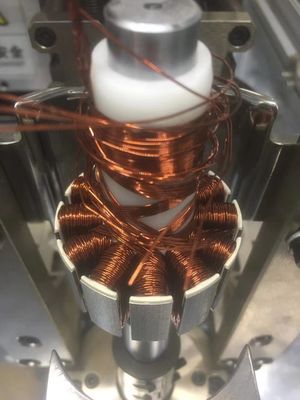

From 2slots to 24slots, other slots are custom made, the smallest outside diameter stator winding machine can wind is 12mm (0.48'' ) , 12slots, showed in below wound stator photo



Single wire or multi wires

Can wind stators with one wire or parellel wires



Muti wires handled

30pcs wires with 15pcs tensioners




Brushless Motor Outrunner stator flyer winding machine Parameter:



Wire diameter: 0.10~0.60mm (AWG18 ~ AWG23)



Operation option: Auto



Automatic winding, automatic indexing, automatic winding arranging, automatic clamping and cutting



Stator slot no. : 2 to 24slots (other slots custom made)



Wire displacement: 60mm



Power suplly: AC220V 50/60Hz



Weight: about 350KGS



Dimension: 1260(L)x650(W)x1150(H)mm



Controller: CNC300



The purpose of these windings is to create a magnetic field when a current is run through them



There are several different types of winding machines, from simple manual feed machines to complex



computer-numeric-control (CNC) machines. Some of the more common uses for winding machines are coil



winding, rope winding, and continuous winding. Many industries use these devices,



including electronics,stator,rotor and armature of motor production and wire industries.



Below samples and drawing are needed for machine manufacturing and commissioning:



1. Stator stack 5pcs without winding



2. Wound stator 1pc



3. Copper wire 1 roll enough for winding 10pcs stators



4. Stator lamination drawing and winding drawing



Question and Answer:

There’s another armature, similar to this one but smaller and with a skew, is it possible to wind this type of



armatures with the machine you quoted us?



For the other one with skew, we need to check the sample or drawing to give conclusion,



Please send 3-5 stacks and wires to our address,



If possible, please send 1pcs wound sample of your mentioned skew armature for checking, too





Please click below picture to view video of muti wires stator winder
