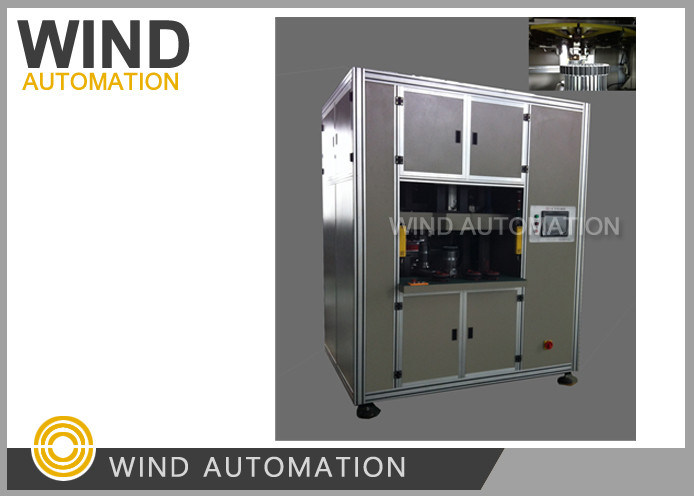

Automatic Stator Wave Winding Machine Car Automobile Generator Alternator
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | New | Test Item: | Stator |
|---|---|---|---|
| Working Station: | Double Station | Automation Type: | Fully Automatic |
| Testing Item Content Display: | Test Result Intuitive Display On Screen One By One | After Sales Service: | Engineer Available For Oversea Service |
| High Light: | flyer winding machine,brushless motor winding |
||
Automatic Car Automobile Generator Alternator Stator Wave Winding And Wedge Insertion WIND-AGWI
(1) Application
Suitable for auto alternator stator wave shape winding automatic wire winding, automatic wire embedding
and putting into winding transfer former automatically.
(2) Quick details of machine opearation
Servo motor control wire arraying and winding, pneumatically shaped to plum blossom, double work
stations automatic position changing, servo automatic wire embedding, automatically put into slot cover,
one work station for wave shape winding and push into wire embedding mould, another station for wire
embedding and put into slot cover, put paper inserted stator on the station manually, repeating operation,
PLC control, colorful touching screen, with press work/single step/automatic three kinds of work method,
high automation and efficiency.
(3) Technical Data
Power Supply Voltage: 3
-380V/220V10% 50Hz
-380V/220V10% 50HzAir source Pressure: 0.5~0.7Mpa
Machine Power: about 8 kW
Wire Winding Speed: 10-120r/min
Stator Slot Number 36/48
Wire Diameter: 0.8-1.6mm
0.8-1.6mmMerging Winding Wire Number: 1-2
Please click below photo to view video
