Fully Automatic Ceiling Fan Stator Winding Machine For OD Below 110 Height 70mm
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | New | Certificate: | CE |
|---|---|---|---|
| Working Station: | Double Station | Winding Speed: | Max. 1500RPM According Wire Gauge |
| Stator Size Range: | Max Lamination Stack Height 70mm (2.76''), OD 110mm(4.33'') | Machine Color: | White Or Per Customer Requirement |
| Automatic Type: | Fully Automatic | After Sales: | Engineers Available To Service Machinery Overseas |
| High Light: | flyer winding machine,brushless motor winding |
||

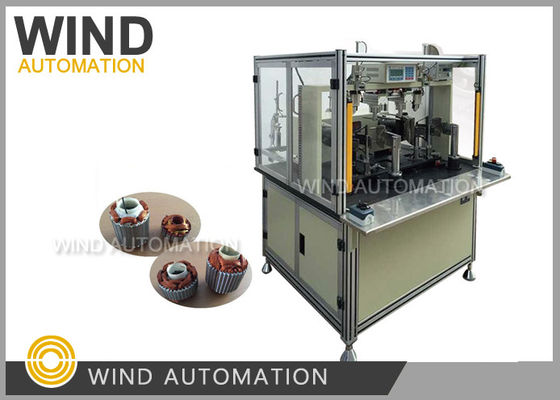

Fully Automatic Ceiling Fan Stator Winding Machine For OD Below 110 Height 70mm WIND-8002D
Application:
AC Fan Motor stator, Ceiling fan Ventilator stator, External Rotor, Variable frequency generator
Advantages:
|
Wide Application |
Clamping, Winding, Arrarying, Indexing and Cutting are fully automatically
Clamping,Cutting,Arraying,Indexing are controlled by stepper motor,
Winding is controlled by Inverter control motor
|
|
Stator Size |
Especially suitable for Stator OD below 110mm and height below70mm
|
|
AC Fan Motor |
2 poles, 4 poles, 6 poles
|
Parameter:
Wire diameter 0.10~0.70mm
Arraying spindle stroke:100mm
Flyer Dia: 200mm
RPM Max 1500RPM
Voltage 220V/50Hz, or customize
Power AC 1.5KW
Weight 350Kg
Dimension 1800mm*1250mm*1650mm
Suggestion:
For Stator Outside Diameter below 110mm and height below70mm,
it is good choice in fully automated action
This is a fully automatic external rotor stator winding machine,
For the usual fan stators 24 slots 2pole, 4poles, 6poles Motor Stator Winding External Rotor ,
the production capacity is about 220pcs per day with WIND AUTOMATION two working station stator winder WIND-8002D,
The normal winding speed is around 1200RPM,
Anyway production capacity is not only related to winding speed,
but also indexing speed, the speed your operator put on insultions,
Per motor manufacturers' experience,
you can have 2 operators to work together to imporve the machine's winding efficiency,
Also, for stator with different stack height, the tooling need to be changed,
Below samples and drawing are needed for machine manufacturing and commissioning:
1. Stator stack 5pcs without winding
2. Wound stator 1pc
3. Copper wire 1 roll enough for winding 10pcs stators
4. Stator lamination drawing and winding drawing
Please click below picture to view video
