12pol / 36pol Flyer Winding Machine Single Station Brushless Motors Outrunner Stator

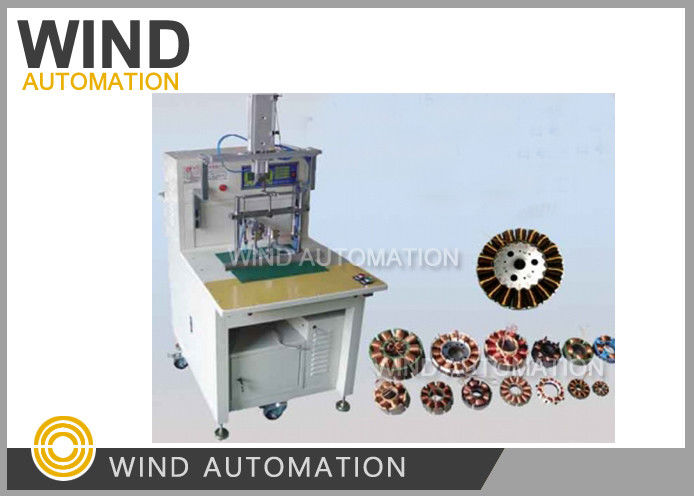

Brushless Motors Outrunner Stator 12pol/36pol Flyer Winding Machine WIND-HMW-205D

Application:

Advantages:

Parameter:

Wire diameter: 0.10~0.60mm

Operation option: Auto

Automatic winding, automatic indexing, automatic winding arranging, automatic clamping and cutting

Stator slot no. : 2 to 24slots (other slots custom made)

Wire displacement: 60mm

Power suplly: AC220V 50/60Hz

Weight: about 350kgs

Dimension: 1260(L)x650(W)x1150(H)mm

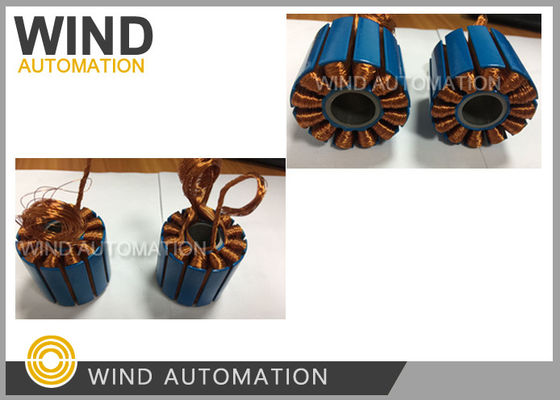

Stator OD 0.433'',Height 0.157'', wire size AWG36, 40turns

Characteristics of brushless motor:

1. Size

If you choose brushless DC motor, you will see many similar models, such as 2216, 2814 and so on. The

top two are stator outer diameter (mm) and the last two number is stator height (mm). The bigger the

outer diameter and the height of the stator, the greater the core of the stator and the more the number of

winding turns , the bigger power of the motor. Of course, the larger of motor stator size, the greater the

power, but the heavier the weight.


If a motor is 2216, the stator's outer diameter is 22mm, and the stator height is 16mm. The stator outer

diameter and stator height are proportional to the power of the motor, and obviously the 2218 is higher

than the 2212 of the motor stator, and the power of 2218 must be bigger than 2216. The size of the model

can see the power two of the two motor with same OD, but this is generally for the same stator diameter

and different height. or same stator height different stator diameter.If the brushless motor stator height

and stator outer diameter are not same as ,it is difficult to compare withmodel.

It should be noted that this dimension refers to the stator itself, not the size of the motor, the thickness of

the motor shell, the shape of the heat dissipation, the height of the base and so on, which all affect the

external size of the motor, so the judgement of the power using the stator size is standard and reliable

than that of the external size.

2. Number and pole number of motor slots

1) The number of slots (N): the number of grooves in the stator core. A brushless motor is a three-phase

    motor, so the number of grooves is a multiple of 3.

2) The number of poles (P): the number of magnetic steel on the stator, the magnet must be used in pairs

    of the north and south poles, and the number of poles must be even.

    The slot number and pole number of the motor are directly written as the number of slot number N pole

    number P, such as 12P14N, which is the meaning of the 14 pole of the 12 slot.

3) Characteristics of the number of slots and the number of poles

    a. The number of slots (N) and the number of poles (P) are inversely proportional to the maximum

    speed,

    the smaller the number of slots (the number of poles), the higher the best speed of the motor.

    For example, the highest speed of 9N12P is higher than that of 12N14.

    b. In the same case of the number of slots(N), the number of poles (P) is proportional to the torque,

    the greater the number, the greater the torque.

    c. Under normal circumstances, the slot number (N) and pole number (P) increases, the sense of

    frustration (the smaller motor will feel a sense of resistant frustration when the motor is not charged with

    the hand rotating motor), the theory of motor vibration will be less, but because the slots are hard to do

    active balance.

3. KV

The KV value of the brushless motor is defined as the speed / V, which means that the input voltage is

increased by 1 volts (V), the rotational speed (turn / minute) of the brushless motor is increased. From

this definition, voltage and motor idling speed follow a strict linear proportional relationship and are

constants, regardless of the relationship between the motor's working voltage, voltage and speed.

4. Stator lamination drawing and winding drawing

Please click below picture to view video
