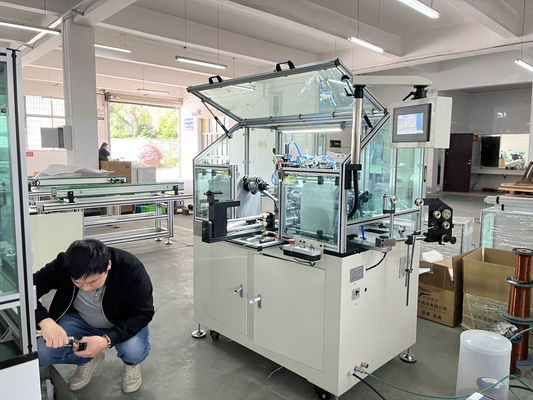

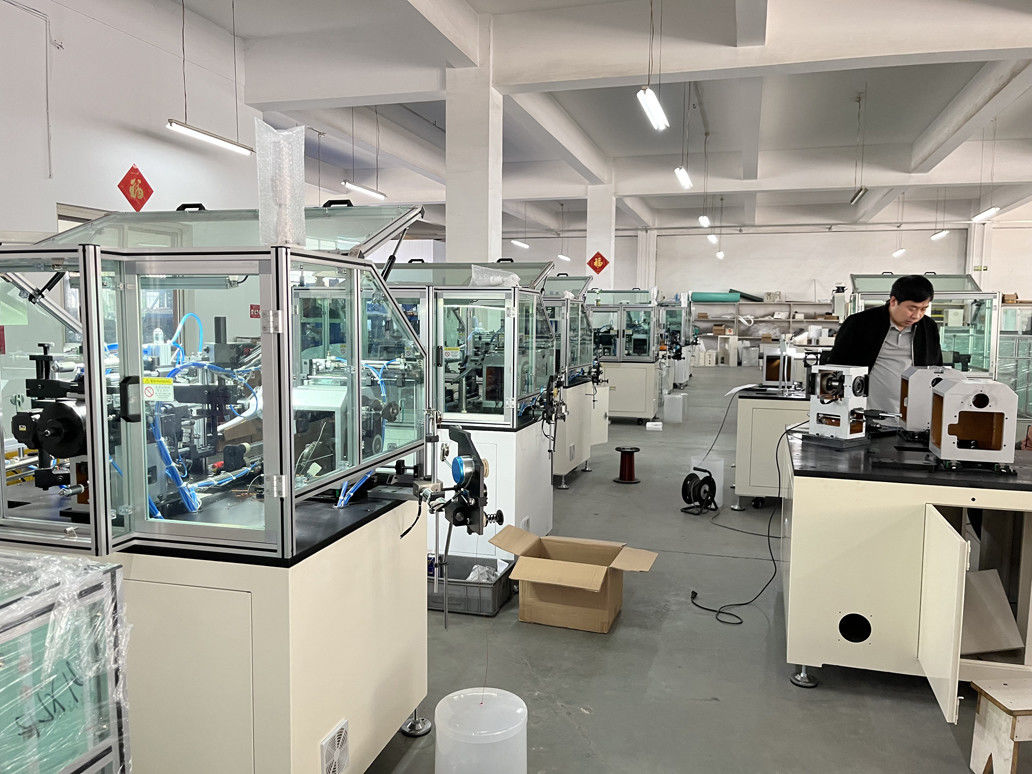

Armature Winding Machine For Home Appliance Motor

China Armature Winding Machine For Home Appliance Motor supplier
Armature Winding Machine For Home Appliance Motor supplier Armature Winding Machine For Home Appliance Motor supplier Armature Winding Machine For Home Appliance Motor supplier Armature Winding Machine For Home Appliance Motor supplier

Large Image :  Armature Winding Machine For Home Appliance Motor

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-ST-TD2B

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Pallet
Delivery Time: 60 Working days
Payment Terms: T/T
Detailed Product Description
Drive Method: Lap Winding 3 Servo Motor Motor Type: Power Tool, Drill, Hammer,de Ranhura, Groove Commutator
Winding Method: Flyer Winding Not Needle Winding Station: One Station Two Fliers
Machine Color: White Or Per Customer Requirement After Sales: Engineers Available To Service Machinery Overseas
NCM No / HS Code:: Coil Winding Machine 8479811000 Copper Wire Size: Max AWG16 1.3mm

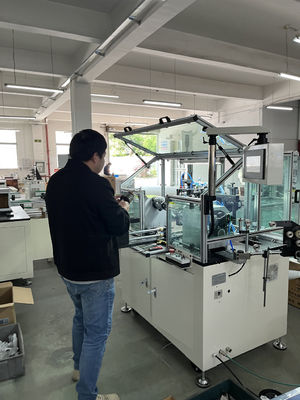

Fully Automatic Armature Winding Machine Rotor Coil Winder With Electronical Tensioner

WIND-ST-TD2B



Armature Winding Machine For Home Appliance Motor

The tesnioner used in This armature Winder is electronically controlled.

Most tensioner used in winder, One is a magnetic powder tensioner, which has a small application range.

One is a hysteresis tensioner, which has a wide application range.

Wind Autotion use hysteresis tensioners.

The photo shows that the maximum torque is 5 KG and the maximum voltage is 24V.



Application:



Slotted type commutator armature winding



The WIND-ST-TD2B full automatic rotor winding machine is a double fly winding machine specially



designed for producing slot type commutator rotor, which is suitable for high-speed winding of medium



and coarse diameter rotor. The machine adopts automatic clipping mechanism and auxiliary wire insertion



method, which greatly improves the winding speed of grooved rotor. This machine is widely used for



winding of DC and series motor rotor. The suitable winding diameter 0.25mm~1.2mm. widely use in thin



wire line slots rotor and large diameter slotted type commutator rotor, which is suitable for the automatic



winding of odd and even numbered slots grooves.







Competitive Advantages:



1. For armature with thin copper wire,



  Machine had good feedback of winding AWG30(0.25mm) copper wire diameter armature



2. For armature with thick wire, machine WIND-ST-TD2B can handle AWG16 (1.35mm) armature



3. No need to work with special designated commutator slotting machine



4. 98% yield rate above assured when the slot commutator quality is good



5. Till now it is the best machine in China for winding slot type armature







Parameter:



Power supply: 220V, 50HZ



Motor: Winding Mitsubshi 1000W servo motor



Arraying Mitsubshi 400W servo motor



Indexing Mitsubshi 400W servo motor



Wire diameter:0.45mm~1.25mm



Unit OD:70~250mm



Spindle: 0~1500rpm



Turns No.0-999



Air pressure: 0.5-0.7Mpa



Pneumatic: Airtac



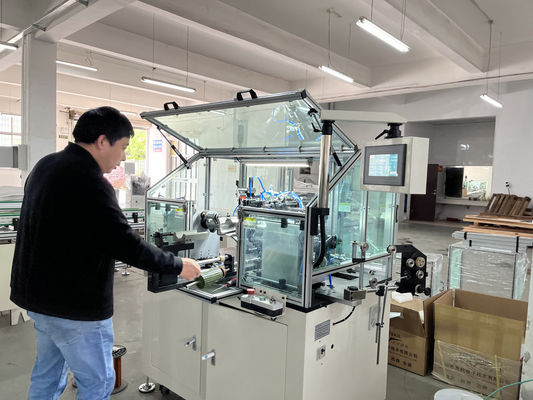

Armature Winding Machine For Home Appliance Motor



Instruction for Use:



Manually put on armature and press 'Start' botton, machine will do clamping, hooking ,windinging, indexing



automatically and repeatly until one armature was fully wound.



WIND-ST-TD2B winding machine is to do winding for the armature with riser type commutator.



It has double flyer to make the winding and with auto wire cutting, clamping structure, assisting wire



inserting way to upgrade the winding speed.





Item Name Type Quantity
1 Spindle rotate belt 165L 1pc
2 Indexing rotate belt 182XL 1pc
3 Belt 102XL 2pcs
4 Fuse RT18-32 2A 2pcs
5 Fuse RT18-32 10A 2pcs
6 Ceramics wire wheel ∮6 2pcs
7 Sensor AL-13D-02 1pc
8 Sensor AL-11RL-02 1pc
9 V bearing   1pc
10   FDS016 1pc
11 Pail for wire   1pc

Tool
Item Name Type Quantity
1 Innder hexagon spanner 8pcs 1set
2 Open spanner 13-16mm 1pc
3 Slotted screw 1.5'' 1pc
4 Cross screw 4'' 1pc
5 Wrench 8pcs 1set
6 Tweezers stainless steel 1pc
7 Diagonal Pliers   1pc
      1pc








Ask and Answer:



Ask:



Are they flier-type winding machine? I would like to understand how your winding machine design can



overcome the problem of traditional winding machine that has been designed for 2 pole motor.



The winding coil in a 4 pole lamination has a smaller angle than a 2 pole lamination across the lamination



slot. Therefore, 4 pole winding machine use a smaller angle wire guiding head to guide the magnet wire to



slide into a 4-pole lamination slot. So, the wire will seat on the side of the slot instead of seating on the



bottom of the slot. For a 2 pole lamination, the guiding head is wider and the wire can be guided to slide



into the bottom of the slot.



If you use a flier type winding machine on a 4 pole or 8 pole armature, do you have any method to guide



the wire to the bottom of the slot first, then go up to the slot opening - tidy and neat.



Answer:



Your concern is the slot filling rate of 4pole,

Yes,the wire will seat on the side of the slot instead of seating on the bottom of the slot was the problem

before and which had been sloved by tooling,

The tooling is key to slove the problem, there were two side plates in tooling which can forced the magnet

wire to bottom.







Please click below picture to view video



Armature Winding Machine For Home Appliance Motor
