Solar Steering Motor Armature Winding Machine Flyer Winder Rotor Lap Winder
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Armature Type: | Even Slots 12,16,36 AC DC Motor Rotor | Armature Poles: | 2Poles,4Poles Solor Power Steering Motor |
|---|---|---|---|
| Wire Diameter: | 0.15mm To 1.26mm (AWG16~AWG34) | Winding Type: | Lap Winding Not Wave Winding |
| Human-Machine Interface: | Diagnose Show On Screen | Operation Method: | Step, Auto, JOG |
| High Light: | armature coil winding machine,rotor winding machine |
||
Solar Steering Motor Armature Flyer Winder Rotor Lap Winding Machine WIND-2A-TD
(1) Application
This is a double-fly fork winding machine specially used for producing hook type commutator rotors.
This winder is sutiable for high-speed winding of medium and large wire diameter rotors.
This machine is windely applied to the winding of DC and series motor rotors.
(2) Competitive Advantages
1. Suitable for winding kinds of special winding design armature

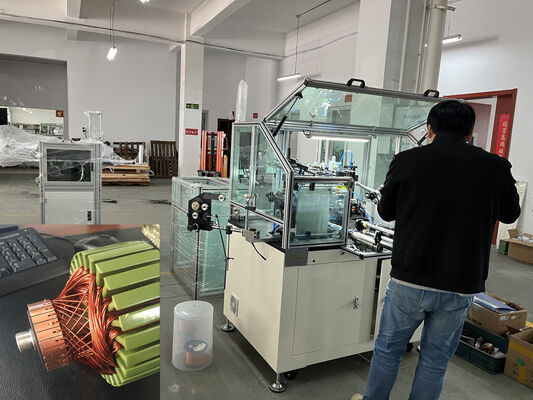

such as the solar steering motor showed in photo
2. For armature / rotor with high slot filling rate
3. For armature double flyer winding machine tensioner, China local motor manufacturers usually use hysteresis tensioner or electrical tensioner
according to wire diameter, winder with hysteresis tension which showed in below armature winding machine photo,
This tensioner control the tensioner in four stages, stand-by tension, indexing tension, hooking tension, winding tension,
Which make the winding result compact neat and nice,
(3) Parameter Data
|
Applicable winding diameter: |
Ф0.15-Ф1.26mm |
|
Rotor diameter: |
Ф20-Ф90mm |
|
Rotor stack thickness: |
10-130mm |
|
Commutator diameter: |
Ф8-Ф50mm |
|
Action process: |
single-action/automatic |
|
Number of rotor grooves: |
odd/even grooves |
|
Winding turns: |
0-99999 |
|
Fly-fork speed: |
0-2000rpm |
|
Parameter storage: |
0-99 |
|
Power source: |
AC380V 50/60Hz |
|
Air source pressure: |
5-7kg/cm² |
|
Total power: |
3.5KW |
|
Total weight: |
about 830kg |
|
Volume: |
1530×1050×1650mm³ |
Sunshine Facing Motor Armature Winding Machine Main Parts:
Mitsubishi Program Controller
Delta Three-set Servo Control System
Embedded Touch Screen Human-computer Interface
Airtac Pneumatic System and Air Source Treatment
South Korea and Japan Main Electrical Elements
Magnetic Hysteresis Tension Control Unit
Taiwan HIWIN Linear Guide Rail
