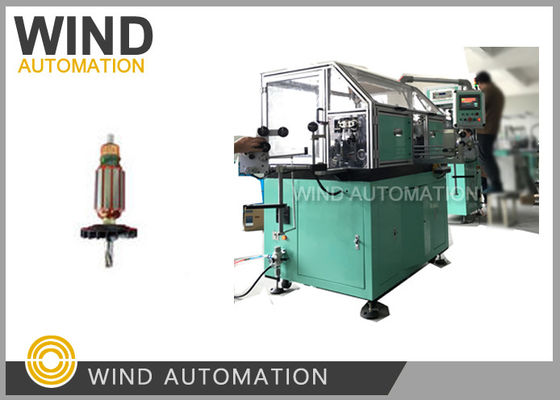

3.0KW 2500r/Min Two Flyer Winding Machine For Wiper Mixer Motor

China 3.0KW 2500r/Min Two Flyer Winding Machine For Wiper Mixer Motor supplier

Large Image :  3.0KW 2500r/Min Two Flyer Winding Machine For Wiper Mixer Motor

Product Details:

Place of Origin: China
Certification: Main parts CE
Model Number: WIND-STR

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Poly wood case suitable for sea and air shipment
Delivery Time: 45 Working Days
Payment Terms: T/T
Detailed Product Description
Armature Type: Hook Type Armature Manufacturing: Power Tool, Mixer, Vacuum Cleaner, Automoible Oil Pump
Armature Slots: Double Flyer Even Slots Covering 12 Slots,16slots,24slots,28 Slots,36slots Winding Type: Lap Winding Not Wave Winding
Human-Machine Interface: Diagnose Show On Screen Operation Method: Step, Auto, JOG
High Light:

rotor winding machine


dynamic balancing machine

Two Flyer Fully Automatic Winder Lap Winding Machine For Wiper Mixer Motor WIND-STR






This armature winder WIND-STR is a fast flyer coil winding machine for motor mass production


manufacturing of hook type commutator armature,Mixer,Vacuum cleaners, Hammers,Power tool...




Working Principle:


This fully automatic winding machine WIND-STR adapts double flyers structure, 2pcs Mitsubishi servo


motor drive the two flyers rotation, and 1pc Mitubishi indexing servo motor make sure the precise




During working, the armature stack is clamped tightly by left and right side two winding tooling and shaft


clamping device. When flyers are running, wire goes through the wire holder, tension device then enters


hollow spindle, comes out from wire sliding wheel, then the wire slides into the armature slot through flyer


wire guiding wheel. After this step, armature into the slot to do winding.

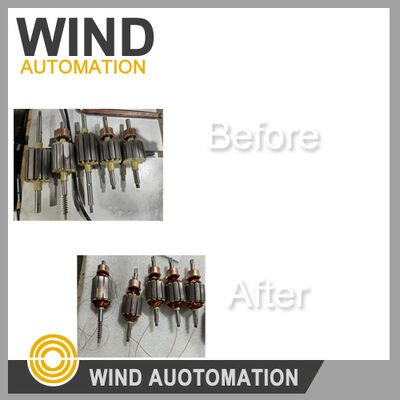

Armature double flyer winding machine WIND-STR takes conductors from two separate reels of wire


simultaneously to wind two slots together. Once would with the correct number of turns and connected to


the respective commutator hook, the armature is indexed automatically to the next pair of slots to be








1. Crazy Fast , in normal condition can wind at speed 1000~1500rpm, get one piece wound armature in




2. The winding parameter can be setted on touch screen for different armatures, easy operation


    as 12 slots, 24 hook


         12slots, 12slots




Quick details:



Armature winding manufacturing requirement


Armature lamination drawing, winding diagram



Armature winder application


Car motor, automotive motor,Wiper motor, mixer motor



Armature commutator type


Hook type armature, not slotted type





Parameter Data:


Wire diameter range: 0.16~1.2 mm

Armature diameter: 20~85 mm

Stack length: 10~70 mm

Shaft diameter: 3~15 mm

Shaft length: less than 250mm

Armature Slot: even slot

Turn number: 0~9999

Commutator diameter: 8~40 mm

Winding speed: 0~2500 rpm

Winding motor power: 1.5KWX2

Angle detecting speed: 0~3000 rpm

Angle detecting motor power: 0.75KWX1


Air supply pressure: 4~6 Kg/cm2

The machine total power: 4.0 KW

Voltage: three phase AC 380V 50/60 Hz

Weight: 1250 Kg

Dimension: 2000(length)X1000(width)X1800(height)mm


Package size 1800*1510*1920mm  is about 5.2 CBM


HS code: 8479811000




Main Parts:


Japan Mitsubishi PLC

Japan Mitsubishi or Panasonic servo motor control system

5.7’’ colorful touch screen system

SMC Cylinder
