Fine Wire Armature Winding Machine DC Motor Coil Winding Machine

China Fine Wire Armature Winding Machine DC Motor Coil Winding Machine supplier

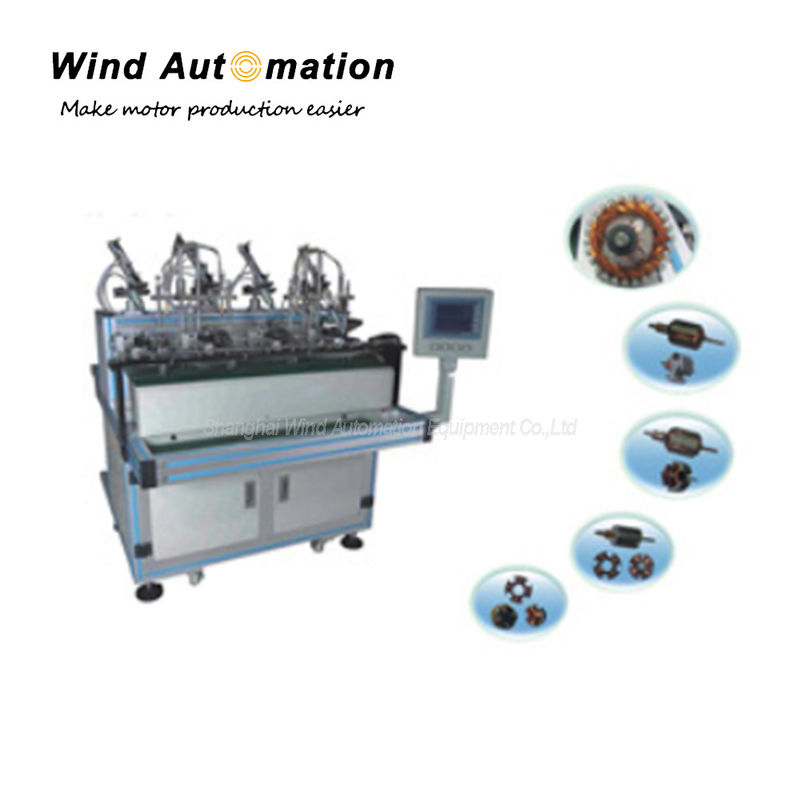

Large Image :  Fine Wire Armature Winding Machine DC Motor Coil Winding Machine

Product Details:

Place of Origin: China
Certification: Main parts CE
Model Number: WIND-STR-2

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Poly wood case suitable for sea and air shipment
Delivery Time: 45 Working Days
Payment Terms: T/T
Contact Now
Detailed Product Description
Armature Commutaor Type: Hook Type,Tang Type Wire Diameter: 0.08~0.30mm (Mechanical Type Tensioner) AWG40 To AWG28
Wire Gaugge: 0.16~0.55mm (Hysteresis Tensioner) AWG23 To AWG34 Winding Type: Lap Winding Not Wave Winding
Human-Machine Interface: Diagnose Show On Screen Operation Method: Step, Auto, JOG
Copper Wire: Fine Wire Thin Wire

Fine Wire Automatic Armature DC Motor Coil Winding Machine AWG 40 To AWG23 Thin Copper Wire 0.08mm To 0.55mm





This armature winder WIND-STR-2 is a fast flyer coil winding machine for motor mass production


manufacturing of hook type tang type commutator armature,Mixer,Vacuum cleaners, Hammers,Power




and suitable for small wire gauge diameter winding.




Competitive Advantages:



Crazy Fast


Customize machine for thin wire armature winding



Easy Operation


The winding parameter can be setted on touch screen for different armatures



Slot and Hooks no.


12slots, 24hook, 12slots,12hooks




Parameter Data:


Wire diameter: 0.08~0.30mm (Mechanical type tensioner) AWG28 to AWG40


                        0.16~0.55mm (Hysteresis tension device) AWG23 to AWG34


Winding slots: Odd/even number


Commutator diameter: 8~40mm


Armature diameter: 20~60mm


Armature stack length: 10~60mm


Winding motor speed: 0~3000 rpm


Control system: Mitsubishi PLC control


Air supply pressure: 0.5~0.7MPa


Voltage:AC220V 50/60Hz


Weight: 500Kg


Dimension: 1800(l)X800(w)X1500(h)mm


HS code: 8479811000




Information needed for Commutator Armature Winding Machine inquiry:


1. Armature/Rotor lamination drawing


2. Armature/Rotor assemble drawing


3. Armature/Rotor stack drawing


4. Armature/Rotor winding diagram drawing: with rotor wire diameter and turn number


5. Armature/Commutator drawing


6. Required productivity


7. Other technical requirement


If possible, it will be better if customer can send us samples.
