Fine Wire Automatic Armature DC Motor Coil Winding Machine AWG 40 To AWG23 Thin Copper Wire 0.08mm To 0.55mm

Fine Wire Automatic Armature DC Motor Coil Winding Machine AWG 40 To AWG23 Thin Copper Wire 0.08mm To 0.55mm

Application:

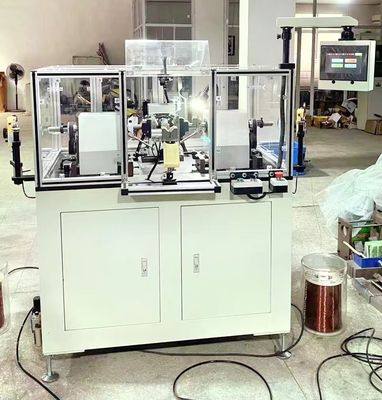

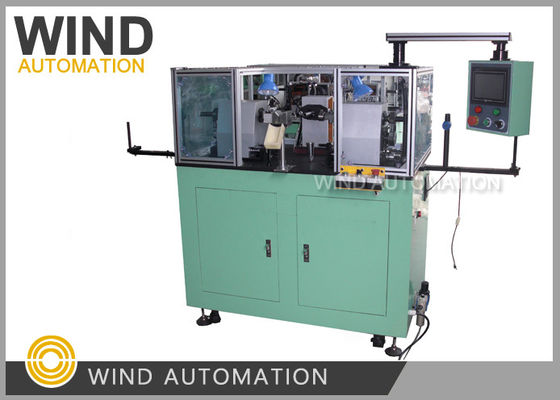

This armature winder WIND-STR-2 is a fast flyer coil winding machine for motor mass production

manufacturing of hook type tang type commutator armature,Mixer,Vacuum cleaners, Hammers,Power

tool...

and suitable for small wire gauge diameter winding.

Competitive Advantages:

Parameter Data:

Wire diameter: 0.08~0.30mm (Mechanical type tensioner) AWG28 to AWG40

                        0.16~0.55mm (Hysteresis tension device) AWG23 to AWG34

Winding slots: Odd/even number

Commutator diameter: 8~40mm

Armature diameter: 20~60mm

Armature stack length: 10~60mm

Winding motor speed: 0~3000 rpm

Control system: Mitsubishi PLC control

Air supply pressure: 0.5~0.7MPa

Voltage:AC220V 50/60Hz

Weight: 500Kg

Dimension: 1800(l)X800(w)X1500(h)mm

HS code: 8479811000

Information needed for Commutator Armature Winding Machine inquiry:

1. Armature/Rotor lamination drawing

2. Armature/Rotor assemble drawing

3. Armature/Rotor stack drawing

4. Armature/Rotor winding diagram drawing: with rotor wire diameter and turn number

5. Armature/Commutator drawing

6. Required productivity

7. Other technical requirement

If possible, it will be better if customer can send us samples.
