Suitable Winding Machine For New Start Product Small BLDC 50W-500W Motor

Certification
Good quality Needle Winding Machine for sales
Good quality Needle Winding Machine for sales
We trust you and have very good references of you from our Shanghai colleagues

—— Olayo Delgado

We are very happy with the machines!

—— Efrain.Alvarado

I'm Online Chat Now

Suitable Winding Machine For New Start Product Small BLDC 50W-500W Motor

China Suitable Winding Machine For New Start Product Small BLDC 50W-500W Motor supplier

Large Image :  Suitable Winding Machine For New Start Product Small BLDC 50W-500W Motor

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-BLDC-2

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Payment Terms: T/T
Detailed Product Description
Winder Station: Two Or Four Stations Stator OD: ø10~120mm
Stack Height: 10~100mm Wire Size Range: 0.1mm~1.0mm (AWG18 To AWG38)
Automatic Type: Fully Automatic Can Handle Thin Wire Thick Wire Machine Color: White Or Per Customer Requirement
Winding Speed: 600RPM After Sales: Engineers Available To Service Machinery Overseas

Suitable Winding Machine For New Start Product Small BLDC 50W-500W Motor WIND-BLDC-2





(1) Application



This needle winding can wind both inslot stator and outrunner stator,



with four axis Yaskawa Servo Motor ,winder is flexible in movement,



the actions winding,crossing, wrap, and slotting, cutting are done automatically

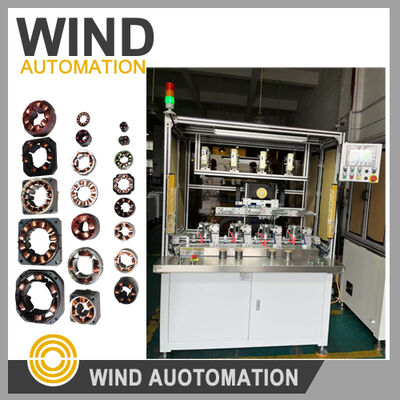

Suitable Winding Machine For New Start Product Small BLDC 50W-500W Motor





(2) Advantages



1. By moving up and down the nozzle and rotating the stator core, it can be wound in any track.



   Therefore, by changing the computer winding procedure,



    the windings can be adjusted to stators with different core stack height and different slot no.


2.  Any operation abnormality and fault status are prompted to operate and maintain in human-machine

   dialogue mode.


3. The number of stitching feet can be set arbitrarily by thread, and the specified 360 degree position



  can be stopped, which makes the threading simple,convenient and shortens the overall production time



4. When winding, the number of coils in each layer can be flexibly changed to achieve the

     winding arraying mode of different stator types.



5. Product programming is simple and convenient, with unique dedicated software,

    unlimited upload and download storage. Easy to master with simple training.


6. Since the in-line slotting action is performed by the high-performance control system and

     the Yaskawa servo motor, the stability of the position of the in-line enameled wire

      is ensured and the time is shortened.


7.  Each unit has been standardized, easy to replace and easy to disassemble.


8. All the toolings are very easy to be changed within 1 minutes expect







(3) Parameter







Prouduct name:

Wire Dia.:

f0.10mm~f1.0mm

Winding speed:

50-600 r/min

Winding method:

needle winding

Stator stack length:

10mm~100mm (0.39'' ~ 3.94'')

Stator ID:

Φ36mm~Φ60mm

Stator OD:

Φ10mm~Φ120mm ( 0.39'' ~ 4.72'')

Pole no:

2,4,6,8,12, 24, 36

Air pressure:

0.5MPa~0.7 MPa

Voltage:

380V/50HZ ,Three-phase four-wire

Power:

7KW

Dimension:

1000(W)×800(D)×1,600(H)mm

Weight:

about1200Kg





Below samples are needed for machine manufacturing and commissioning:



1. Stator stack 5pcs without winding



2. Wound stator 1pc



3. Copper wire 1 roll enough for winding 15pcs stators







Please click below video to watch machine working

Contact Details
Shanghai Wind Automation Equipment Co.,Ltd

Contact Person: Ms. Emily

Send your inquiry directly to us (0 / 3000)
