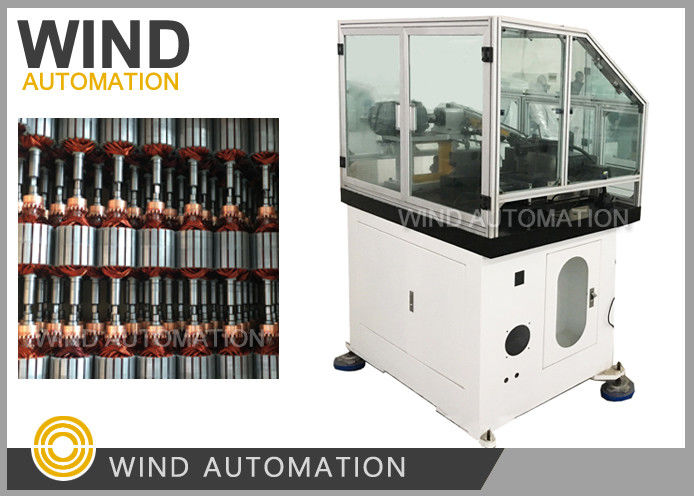

Solar Energy Towards The Sun Motor Armature Winder Hook Type Coil Winding WIND-STR
Armature Winder Application:
Solar is the gift of the nature, Solar steering motor is a type of product which can get full use of the
nature's gift, it make sure the solar charging device always face the sunshine,
The coil winding machine wind the copper wire to the armature slot
Competitive Advantages:
1. Easy to changeover and maintenance
2. If the armature is only one type,
the winding machine is very easy to use, operate only need to load and unload armature
Armature Winding Machine Feature:
Lap winding with double flyer wire
gauge range |
Series motor include dc motor wiper, power tools,mixer,blender,
automobile car motor etc
|
Armature commutator type |
Hook type
|
Automatic or semi automatic |
You only need to load and unload armature, other actions such as
hooking, winding, indexing and cutting are wound by machine
automatcially |
Parameter Data:
Wire diameter range: 0.16~1.2 mm
Armature diameter: 20~85 mm
Stack length: 10~70 mm
Shaft diameter: 3~15 mm
Shaft length: less than 250mm
Armature Slot: even slot
Turn number: 0~9999
Commutator diameter: 8~40 mm
Winding speed: 0~2500 rpm
Winding motor power: 1.5KWX2
Angle detecting speed: 0~3000 rpm
Angle detecting motor power: 0.75KWX1
Air supply pressure: 4~6 Kg/cm2
The machine total power: 4.0 KW
Voltage: three phase AC 380V 50/60 Hz
Weight: 1250 Kg
Dimension: 2000(length)X1000(width)X1800(height)mm
Package size 1800*1510*1920mm is about 5.2 CBM
HS code: 8479811000
The armatures wound by double flyer winding machine WIND-STR passed the pin hole test of Japanese based company,
Please click below winding machine wound armature picture to view video
