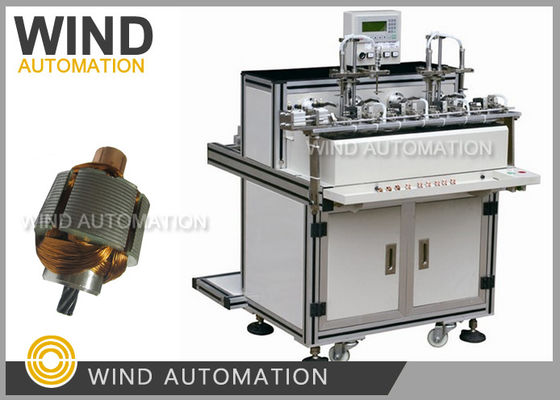

ODD Slot Micro Motor Armature Winding Machine Rotor Winding Machine For 3 / 5 / 7 Slots

ODD Slot Micro Armature Rotor Winding Machine For 3,5 Slots WIND-ODD-4

Application:

Micro Motor with 3 slots, 5 slots, even slots covering power tool, toy,

windshield washer pump, door lock actuator,automotive parts

Advantages:

1. Automatic clamping, automatic winding, automatic indexing,automatic hooking commutator​ angle

2. High efficiency,there are 4 working stations, 4 armature can be winded at same time

3. Wire diameter range is 0.08~0.55mm (AWG23 ~ AWG40)

4. 98% yield rate above assured when the slot commutator quality is good

5. Till now it is the best machine in China for winding slot type armature

Parameter:

1. Wire diameter: 0.08~0.55mm(AWG23 ~ AWG40)

2. Armature type: Even slots such as 3,5 slots rotor

3. Armature diameter: 8~25mm (0.315'' to 1'')

4. Max armature stack length: 30mm

5.Winding motor speed:0~3000 rpm

6.Max shaft length: 70mm

7.Rated power: ≤1.2kW

8.Air supply pressure: 0.4MPa to 0.8MPa

9.Voltage: AC220V 50/60Hz

10.Working environment temperature: 0℃~45℃

11.Working environment humidity:10%~60%(no condensation)

12.Machine dimension:1100*1200*1300mm

13.Package dimension:1200*1200*1500mm

14.Machine weight:320Kg

15.Package weight:430Kg

Information needed when you send inquiry:

1. Winding diagram include wire diameter

2. Armature lamination drawing

Below is a winding way of 5slots rotor for  DC gearmotor applicaiton:

slot 1 to slot 3

Slot 2 to slot 4

Slot 3 to slot 5

Slot 4 to slot 1

Slot 5 to slot 2

Please click below picture to view video
