Product Details:
Payment & Shipping Terms:
|
Coil Winding Type: | Brushless Motor Polarity Motor Stator | Wire Type: | Round Wire 0.45mm~1.25mm |
---|---|---|---|
Winding Poles: | Flyer Winding 18Poles | Station: | One, Two, Four Working Stations Option |
Machine Color: | White Or Per Customer Requirement | After Sales: | Engineers Available To Service Machinery Overseas |
NCM No / HS Code:: | Coil Winding Machine 8479811000 | ||
Highlight: | armature coil winding machine,dynamic balancing machine |

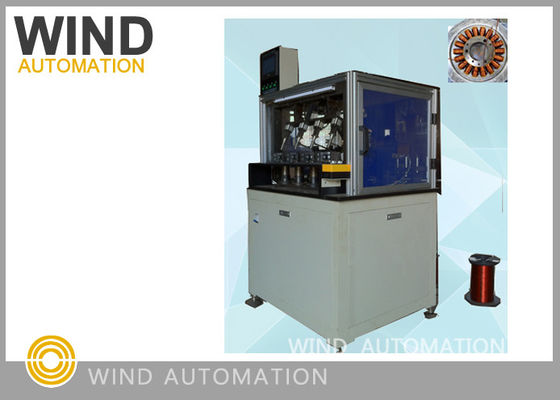

Motorcycle Magneto Engine Generator Stator Winding Machine Coil Winder WIND-MW-4
Application:
Motorcycle Magneto Engine, Generator Stator,Outside stator, Outrunner stator
Advantages:
1. Motorcycle Magneto Engine Stator dedicated machine widely used in
outside stator winding for motorcycle magneto manufacturers
2. Magneto Engine Stator have thin and thick winding on outside segments,
machine can wind both type with thin and thick wire
3. Well known brand part inlcuding three Mitsubshi Servo device,Mitsubishi PLC
ensure the winding quality
4. Many China Local users in Chongqing which is the city of Motorcycle use this type,
Time tells the constant quality of the stator coil winding machine
Parameter:
Power supply: 220V, 50HZ
Motor: Winding Mitsubshi 1000W servo motor
Arraying Mitsubshi 400W servo motor
Indexing Mitsubshi 400W servo motor
Wire diameter:0.45mm~1.25mm
Unit OD:70~250mm
Spindle: 0~1500rpm
Turns No.0-999
Air pressure: 0.5-0.7Mpa
Pneumatic: Airtac
Ask and answer:
How many stators will this machine be capable of winding in an hour?
It is an outer rotor/inner stator,our design is 456 turns, 31SWG, and 18 poles.
Magneto polarity motor stator winding Machines with 2 station and 4stations for different yield
Stator winding machine application |
Motorcycle Magneto Engine, Generator Stator,
Outside stator, Outrunner stator
|
Winding station |
2 station or 4 station or different stator manufacturing yield
|
Winding machine control system |
Winding, indexing, arraying are all Mitsubshi servo motor
|
Please click below picture to view video
