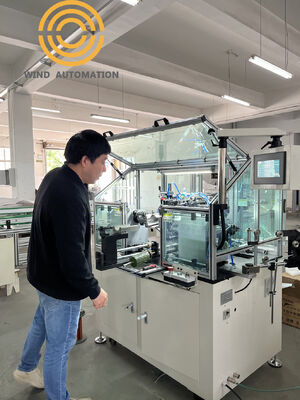

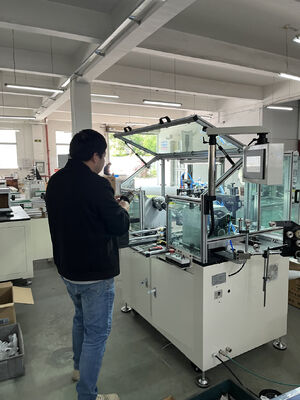

Copper Wire Armature Winding Machine PMDC Rotor Riser Commutator

China Copper Wire Armature Winding Machine PMDC Rotor Riser Commutator supplier
Copper Wire Armature Winding Machine PMDC Rotor Riser Commutator supplier Copper Wire Armature Winding Machine PMDC Rotor Riser Commutator supplier Copper Wire Armature Winding Machine PMDC Rotor Riser Commutator supplier Copper Wire Armature Winding Machine PMDC Rotor Riser Commutator supplier Copper Wire Armature Winding Machine PMDC Rotor Riser Commutator supplier

Large Image :  Copper Wire Armature Winding Machine PMDC Rotor Riser Commutator

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-ST-TD2B

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Pallet
Delivery Time: 60 Working days
Payment Terms: T/T
Detailed Product Description
Coil Winding Type: Armature Lap Wire Winding Motor Type: Power Tool, Drill, Hammer,de Ranhura, Groove Commutator
Winding Method: Flyer Winding Not Needle Winding Station: One Station Two Fliers
Machine Color: White Or Per Customer Requirement After Sales: Engineers Available To Service Machinery Overseas
NCM No / HS Code:: Coil Winding Machine 8479811000
High Light:

rotor winding machine

,

dynamic balancing machine

PMDC Rotor Riser Commutator Armature AWG16 To AWG30 Copper Wire Winding Machine
WIND-ST-TD2B



Application:

Slotted winding



Advantages:

1. For armature with thin copper wire,

  Machine had good feedback of winding AWG30(0.25mm) copper wire diameter armature

2. For armature with thick wire, machine WIND-ST-TD2B can handle AWG16 (1.35mm) armature

3. No need to work with special designated commutator slotting machine

4. 98% yield rate above assured when the slot commutator quality is good

5. Till now it is the best machine in China for winding slot type armature



Parameter:

Power supply: 220V, 50HZ

Motor: Winding Mitsubshi 1000W servo motor

Arraying Mitsubshi 400W servo motor

Indexing Mitsubshi 400W servo motor

Wire diameter:0.45mm~1.25mm

Unit OD:70~250mm

Spindle: 0~1500rpm

Turns No.0-999

Air pressure: 0.5-0.7Mpa

Pneumatic: Airtac



Instruction for Use:

Manually put on armature and press 'Start' botton, machine will do clamping, hooking ,windinging, indexing

automatically and repeatly until one armature was fully wound.

WIND-ST-TD2B winding machine is to do winding for the armature with riser type commutator.

It has double flyer to make the winding and with auto wire cutting, clamping structure, assisting wire

inserting way to upgrade the winding speed.



ItemNameTypeQuantity
1Spindle rotate belt165L1pc
2Indexing rotate belt182XL1pc
3Belt102XL2pcs
4FuseRT18-32 2A2pcs
5FuseRT18-32 10A2pcs
6Ceramics wire wheel∮62pcs
7SensorAL-13D-021pc
8SensorAL-11RL-021pc
9V bearing 1pc
10 FDS0161pc
11Pail for wire 1pc

Tool
ItemNameTypeQuantity
1Innder hexagon spanner8pcs1set
2Open spanner13-16mm1pc
3Slotted screw1.5''1pc
4Cross screw4''1pc
5Wrench8pcs1set
6Tweezersstainless steel1pc
7Diagonal Pliers 1pc
   1pc
