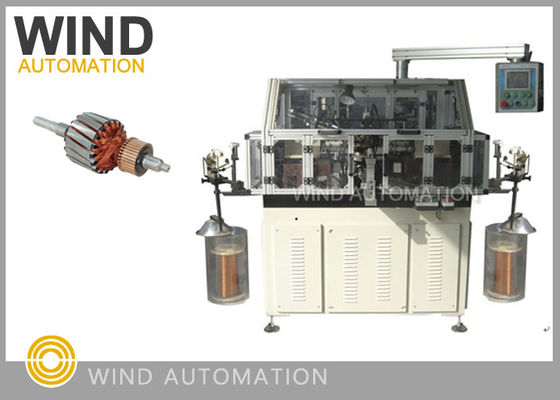

Dual Flyer Armature Winding Machine / Lap Winding Machine For 4poles Rotor

China Dual Flyer Armature Winding Machine /  Lap Winding Machine For 4poles Rotor supplier

Large Image :  Dual Flyer Armature Winding Machine / Lap Winding Machine For 4poles Rotor

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: Main parts CE
Model Number: WIND-STR

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Poly wood case suitable for sea and air shipment
Delivery Time: 45 Working Days
Payment Terms: T/T
Detailed Product Description
Armature Type: Even Slots 12,16,36 AC DC Motor Rotor Armature Poles: 4Poles
Armature Slots: Double Flyer Even Slots Covering 12 Slots,16slots,24slots,28 Slots,36slots Winding Type: Lap Winding Not Wave Winding
Human-Machine Interface: Diagnose Show On Screen Operation Method: Step, Auto, JOG
Highlight:

armature coil winding machine

,

rotor winding machine



Automatic Dual Flyer Armature Winder Lap Winding Machine For 4poles Rotor WIND-STR







Application:



This armature winder WIND-STR is a fast flyer coil winding machine for motor mass production



manufacturing of hook type commutator armature,Mixer,Vacuum cleaners, Hammers,Power tool...







Working Principle:



This fully automatic winding machine WIND-STR adapts double flyers structure, 2pcs Mitsubishi servo



motor drive the two flyers rotation, and 1pc Mitubishi indexing servo motor make sure the precise



indexing.



During working, the armature body is clamped tightly by left and right side two winding tooling and shaft



clamping device. When flyers are running, wire goes through the wire holder, tension device then enters



hollow spindle, comes out from wire sliding wheel, then the wire slides into the armature slot through flyer



wire guiding wheel. After this step, armature into the slot to do winding.







Advantages:



1. Crazy Fast , in normal condition can wind at speed 1000~1500rpm, get one piece wound armature in



    23s



2. The winding parameter can be setted on touch screen for different armatures, easy operation



    as 12 slots, 24 hook



         12slots, 12slots



3. Double flyer winding machine can wind armatures with a better balancing than flyer winder







The windings generator magnetic filed in motors, there are kinds of armatures with different shape



windings conductors,



During which the lap winding, wave winding are windely used in universal motor, while conductor forming



flat wire round wire forming are windely used in starter motor armature.





For PMDC motor, how many magnets and brushes related to how many poles,



for example with 2pole, 16 segments,The winding is always symmetrical,



Use of fractional pitch is not a design compromises to facilitate automatic manufacture and the fractional-



pitch type of winding is in general use, because it produces less sparking and because it requires less



copper, which means lower armature resistance.



Winding pitch is a design compromise, but not to facilitate automatic construction.







Parameter Data:



Wire diameter range 0.16~1.2 mm
Armature outside diameter 20~85 mm
Stack length 10~70 mm
Shaft diameter 3~15 mm
Shaft length less than 250mm
Armature Slot even slot
Turns number 0~9999
Commutator diameter 8~40 mm
Winding speed 0~2500 rpm
Winding motor power

1.5KWX2

(left flyer, right flyer)

Angle detecting speed 0~3000 rpm
Angle detecting motor power 0.75KWX1
Air supply pressure 4~6 Kg/cm2
Total power 4.0 KW
Voltage three phase AC 380V 50/60 Hz
Weight 1250 KGS
Dimension 2000(length)X1000(width)X1800(height)mm
Package size 1800*1510*1920mm is about 5.2 CBM






Main Parts:



Japan Mitsubishi PLC



Japan Mitsubishi or Panasonic servo motor control system



5.7’’ colorful touch screen system



SMC Cylinder







Suggestion:



We tried to wind armatures on your machine WIND-STR,

and find there are some aspect your armature can improve,

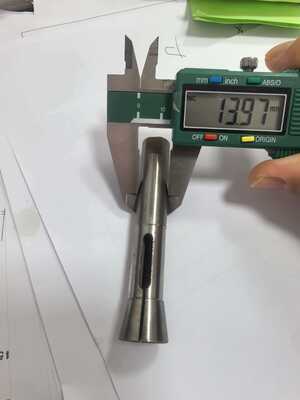

1. The shaft is not straight when you insert shaft to stack it get bent in some area,

2. The insulation paper is not sticking to the slot perfectly

Above is just for your information, what we are doing now is let the winding machine

adapt to your current samples.





Please click below picture to view video



Dual Flyer Armature Winding Machine /  Lap Winding Machine For 4poles Rotor
