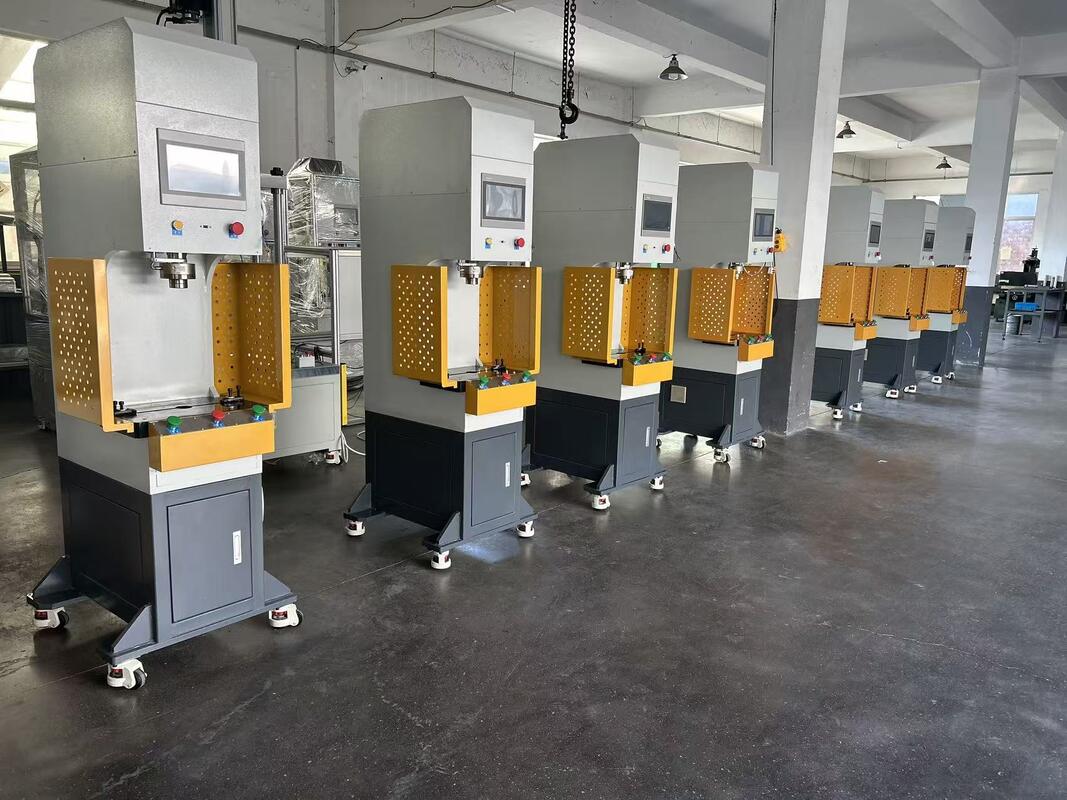

Armature Rotor Bearing Assembly With Servo Press Device Precisely

Large Image : Armature Rotor Bearing Assembly With Servo Press Device Precisely Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	WIND AUTOMATION
Model Number:	WIND-S32-3T

Contact Now

Detailed Product Description

Condition:	New	Pressure:	Servo Press
Workpiece:	Armature Shaft Or Commutator	Closing Height:	200mm
After Sales:	Engineers Available To Service Machinery Overseas	HS Code:	84629190

Armature Rotor Bearing Assembly With Servo Device Precise Device WIND-S32-3T

1)Application:

Operation: press-fit bearings onto rotor shafts (bearing-to-shaft assembly).

Bearing types: primarily sealed deep-groove ball bearings and some sensor bearings

(examples include 6202/6203/6302/6303/6304/6204/6305/6306 series).

Process control & traceability

Servo press must support position control (and velocity control), with programmable “recipes” by bearing/rotor series.

Built-in force–displacement curve monitoring with high/low limits.

Data logging per assembly (curve + peak force + displacement + timestamp + recipe ID + operator ID if available).

Ability to export data (CSV or database).

Capacity / mechanical

Stroke and daylight: enough to accommodate typical rotor shaft lengths with proper support (a standard configuration and options).

Tooling: quick-change inner-ring push tools/mandrels for multiple bearing sizes + adjustable fixtures to support the rotor and maintain alignment/concentricity.

Changeover: target simple changeover between bearing sizes/rotor series.

Advantages:

1. The ball bearing is single side, wide application of big rotor and ball bearing, make sure precisely

2. 100% degree of satisfaction from motor manufacturer users after 12months

Parameter:

Armature Rotor Bearing Assembly With Servo Press Device Precisely 0
