120 To 180 Piece Per HourStator Coil Powder Coating Machine

China 120 To 180 Piece Per HourStator Coil Powder Coating Machine supplier

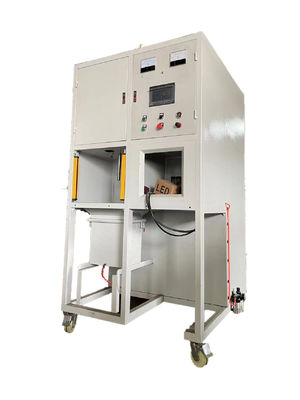

Large Image :  120 To 180 Piece Per HourStator Coil Powder Coating Machine

Product Details:

Place of Origin: China
Model Number: WIND-JF

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Wooden pallet
Delivery Time: 60 working days
Payment Terms: T/T
Detailed Product Description
Condition: New Coil Coating: Stator Coil Coating, Not Stack Coating Type
Coating Method: Fluidized Bed Process Stator Type: Small High Speed Motor Stator Coil For Micro Motor
Application: Mixer Meat Grinder Power Tool Small Electromotor Of Home Appliances. After Sales: Engineers Available To Service Machinery Overseas


120 To 180 Piece Per Hour Stator Coil Powder Coating Machine WIND-SCPC




(1) Application:


High speed motor covering mixer, meat grinder, power tool stator which run at a fast RPM




(2) Competitive Advantages:


1. This power coating machine working output  ability 120~180pcs/h


2. The machine has count function


3. Working hours can be decied by user, one respected user is Black and Decker(Stanley power tool)




(3)​ Machine composition:

a. Coil powder coating machine: 1set, including:

    1) Machine mainframe 1set


    Outline dimension:L1253×W1300(include powder cleaning room 500mm) xH2100mm
    The room body manufactured by 1.2mm A3 cold rolled plate
    2) DC electrical heating device: 1set
    Heating power(0~10KW, clearance working way)adjustable,it can set heating time
    3) Pneumatic rise and decline device 1 set

    4) Fluidized bed coating device: 1set

    All PVC plate manufacture, with detachable air chamber and micro-hole sheet.
    5) Powder vibration device 1set
    6) First step pulse recycling in the back 1set, with 2pcs filter element and pulse auto back
    flushingfunction, it can clean the powder in the filter element automatically without turning off the
    machine, with 1 set powder-blowing gun
    7) The coating room doorway install photo-electricity protection(raster)device, this keep the user saver
    when operating
    8) The machine has count function

b. Powder secondary recycling machine(outline dimension L830×W830×H1700mm): 1 set

c. Use 25 type pulse back flushing filter element way recycling machine, motor power 2.2KW.




(4) Parameter:




Design parameter



Workpiece name

Motor stator coil



Workpiece material

Enameled wire



Workpiece Dimension

Stator lamination diameter<Φ95mm
stator lamination thickness(includecoil height)<100mm Max



Workpiece weight

<3 Kg Max/pc





This output means the machine working ability;
it depends on the powder characteristic.


Working hours


Decide by customer



(5) Working process:

(1) Load the coil (1pc)

(2)Turn on the switch (go up and down, heating, coating etc controlled by time relay to work automatically)

(3) After finish coating,put into oven together  for baking (prepared by customer, the bake requirement of




Please click below picture to view video

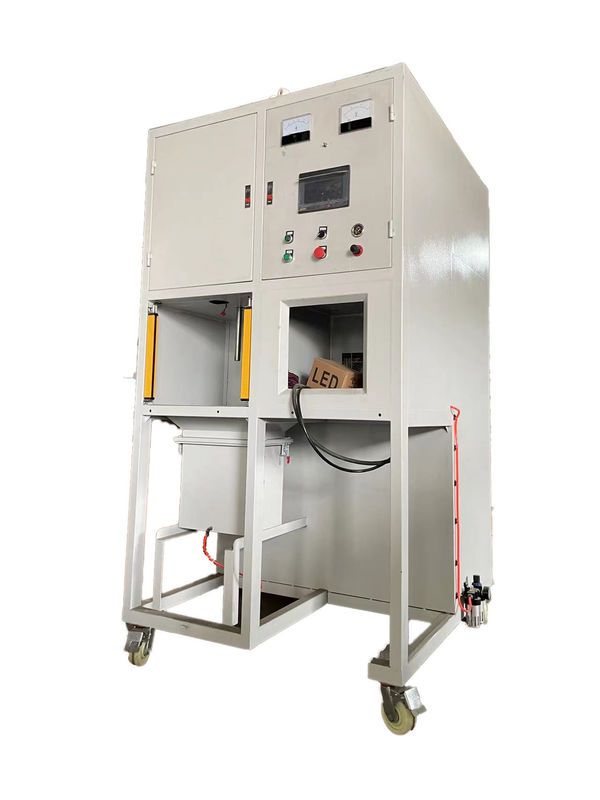

120 To 180 Piece Per HourStator Coil Powder Coating Machine
