Inside Slot Stack Fluidization Coater For Brushless DC Motor Blue Green Resin

China Inside Slot Stack Fluidization Coater For Brushless DC Motor Blue Green Resin supplier

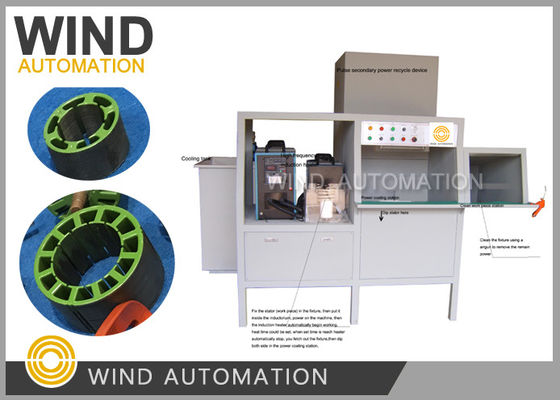

Large Image :  Inside Slot Stack Fluidization Coater For Brushless DC Motor Blue Green Resin

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: WIND-HDP

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Wooden pallet
Delivery Time: 60 working days
Payment Terms: T/T
Detailed Product Description
Resin Color: Blue, Green Powder Type: 3M
Coating Method: Fluidized Bed Process,not Electrostatic Stator Type: DC Motor Stator, AC Motor Stator
Application: Stator Stack Insulation After Sales: Engineers Available To Service Machinery Overseas

Hot Fluid Bed Dipping Machine For Motor Armature Stator Stack  WIND-HDP



This powder coating machine with hot fluid bed dipping metod is

capable of coated armature/stator lamination stack inslot/outslot insulation treatment.



It should be used together with a pre-heating oven.

After armature/stator stack pre-heated, load it into armature/stator fixture,

press start button, safety door closes, then machine will automatically dip stator into the fluidised powder bed.

After powder coating, machine will automatically lift the stator, rotate it 180 degree to achieve uniform and even coating result.

There are also a separate area for removing excess powder with an air gun so that powder can be recycled and re-used.



Features

1. Stator should be pre-heated.

2. Manual loading and unloading

3. Dipping time adjustable on touch screen

4. Safety door to keep powder contained

5. With powder recycling function and fixture rotation function

6. Stator pre-heating temperature is as per customer’s requirement, our recommendation is 220-230 degree.



Operation step

1. Power on machine

2. Pre-heat stators

3. Select related stator parameter on touch screen

4. Load heated stator

5. Press auto start button

6. Machine will automatically do powder coating

7. Unload stator

8. Remove extra powder by air gun



Specification

Ambient temperature -20℃~40℃
Relative humidity Less than 80%
Air supply 0.6MPa
Power 3KW
Power supply AC 380V ± 10%, 50Hz / 60Hz
Dimensions 1200(L)X1280(W)X2060(H) mm






Please click below photo to view machine working video
