AC Motor Stator Coil Middle Forming Machine Winding Expaner WIND-160-MF

China AC Motor Stator Coil Middle Forming Machine Winding Expaner WIND-160-MF supplier

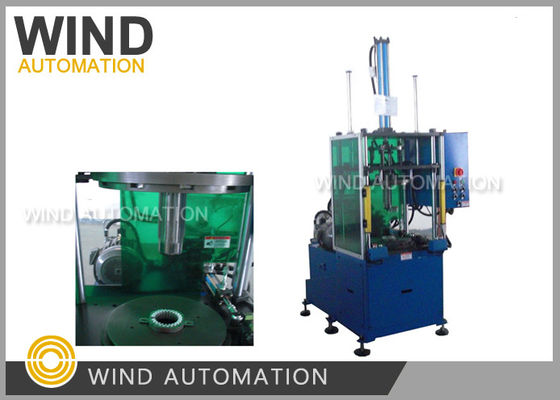

Large Image :  AC Motor Stator Coil Middle Forming Machine Winding Expaner WIND-160-MF

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: WIND-160-MF

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Packaging Details: Pallet
Delivery Time: 45 working days
Detailed Product Description
Condition: New Workpiece: Form And Extend The Stator Coil After Winding Inserting
Power: 3.75KW Output: 1500pcs/8 Hours For A Standard Size Stator
After Sales: Engineers Available To Service Machinery Overseas HS Code: 8479819000
High Light:

ball bearing press machine

,

bearing press machine

AC Motor Stator Coil Middle Forming Machine Winding Expaner China Supplier WIND-160-MF







(1) Application



Expland the stator coil let it compact and smart







(2) Advantages



1. Middle forming is a necessary process for ac motor manufacturing for forming the winding



2. With teeth protection







(3) Parameter



Thickness of stator lamination: 20mm-100mm


Stator ID: Φ 30mm- Φ 120mm


Max outer diameter of stator: Φ 160mm


Displacement of oil pump: 20F


Input: 380V /50Hz


Power: 3.75KW


Machine productivity: around 1500pcs/8 hours


Dimension: 1200mm × 750mm × 2500mm


Weight: ≈ 1000kg
