WIND-STY10 Hydraulic Press Machine Ball Bearing 6203 6304 Press To Armature Rotor

China WIND-STY10 Hydraulic Press Machine Ball Bearing 6203 6304 Press To Armature Rotor supplier
WIND-STY10 Hydraulic Press Machine Ball Bearing 6203 6304 Press To Armature Rotor supplier WIND-STY10 Hydraulic Press Machine Ball Bearing 6203 6304 Press To Armature Rotor supplier

Large Image :  WIND-STY10 Hydraulic Press Machine Ball Bearing 6203 6304 Press To Armature Rotor

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: WIND-STY10
Detailed Product Description
Condition: New Pressure: Hydraulic Press
Workpiece: Armature Shaft Or Commutator Closing Height: 200mm
After Sales: Engineers Available To Service Machinery Overseas HS Code: 84629190
High Light:

hydraulic bearing press

,

bearing press machine

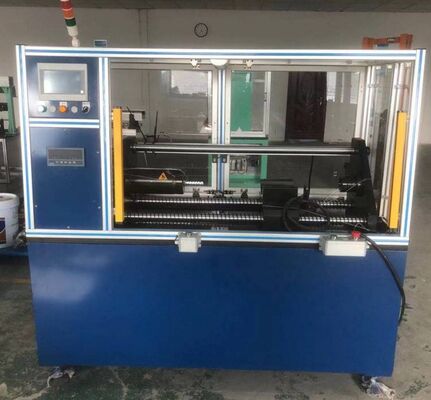

Ball Bearing 6203 6304 Press To Armature Rotor By China Hydraulic Device WIND-STY10







Application:



Press ball bearing to armature (rotor)







Advantages:



1. The ball bearing can be both sides or single side



2. Hydraulic press have constant pressure for place ball bearing in right place



3. With pressure detection device







Parameter:



Custom made machine

WIND-STY10 Hydraulic Press Machine Ball Bearing 6203 6304 Press To Armature Rotor











WIND-STY10 Hydraulic Press Machine Ball Bearing 6203 6304 Press To Armature Rotor

This interface mainly displays the running status and alarm prompts

1) Total output and Shift output

The cumulative output mainly records the total amount of products produced since the machine is put into operation, and cannot be reset.

The shift output is the output produced on duty, and the output can be reset to zero the next day after the shift.



2) Pressed actual position and pressed to setted position

The pressed actual position refers to the specific position where the bearing is pressed into the rotor shaft, which is the current coordinate point of the value grating ruler.

The pressed to setted position is the set target value of the bearing press-fit.



3) Pressure time

Pressure time is the delay time (maximum 9.9) before the cylinder returns after the bearing is pressed into the target position.



4) One rotor time

One rotor time is the time from pressing the start button to finishing the product



5) Step/Auto & Lighting

Step/Auto refers to the current running state,

Auto is to press to start and automatically press to the end.

If in Step state, the machine will run step by step by pressing both hands.

The lighting is automatically turned on after entering the running interface, this screen can switch the lighting switch



WIND-STY10 Hydraulic Press Machine Ball Bearing 6203 6304 Press To Armature Rotor

1) Parameter number and Parameter name



The Parameter number refers to the number of the parameter to be set, and the Parameter name is the name of the corresponding parameter number. For example (parameter number is 0, parameter name is 500.000 and cannot be set to letters) After setting the parameter number and the corresponding name, you can directly input the related parameter number to use for according rotor.



2) Cylinder position and Reset grating ruler



The oil cylinder position refers to the displayed value of the current position of the grating ruler.

The Reset grating ruler means the current position of the grating scale is reset to 0.



3) Cylinder fast forward and Cylinder slow forward and Cylinder rewind



Cylinder fast forward and Cylinder slow forward is the position where the oil cylinder

changes from fast to slow speed during the pressing process of the oil cylinder.

Cylinder rewind is pressed to the setting end point of the grating ruler













Below information are needed when you send inquiry:



1. The bearing size such as 6203,6304 and so on



2. The pressure of bearing



3. Rotor drawing with bearing location on rotor





Operation instruction video links

The press WIND-STY10 before shipment in the year 2021 (repeated order of some motor manufacturer)



the press machine cycle time (20s'/pc for the biggest shaft stroke rotor)

and setup video for changing fixture,



https://youtu.be/5sfHF_YvEhk

https://youtu.be/PhhHLgGI_Go





For reference of press WIND-STY10 in the year 2017

1)Video for machine demo

https://youtu.be/iL6HfHQiqGg



2)Simple instruction

https://youtu.be/kGubPingIyI



3)The video https://youtu.be/7QeVJvbIF8c

is just demo for how to set up position when you have to change tooling,

You put on ball bearing and rotors, then press the button with both hands,

then the ball bearing were pressed





Contact Details
Shanghai Wind Automation Equipment Co.,Ltd

Contact Person: Ms. Emily

Send your inquiry directly to us (0 / 3000)
