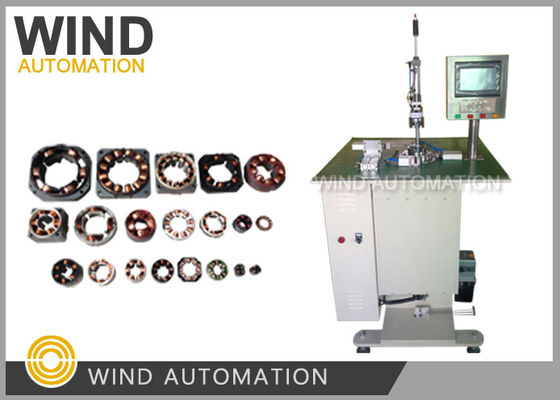

Needle Winder 4 Axis CNC Cam Indexing Thin Wire Below 0.8mm Stator

China Needle Winder 4 Axis CNC Cam Indexing Thin Wire Below 0.8mm Stator supplier

Large Image :  Needle Winder 4 Axis CNC Cam Indexing Thin Wire Below 0.8mm Stator

Product Details:

Place of Origin: China
Certification: CE
Model Number: WIND-3-Needle

Payment & Shipping Terms:

Price: Negotiable
Payment Terms: T/T
Detailed Product Description
Condition: New Controller: 4 Axis CNC
Working Station: Single Station Wire Gauge: Below 0.8mm AWG24
Automatic Type: Fully Automatic Machine Color: White Or Per Customer Requirement
After SalesWinding Speed: Engineers Available To Service Machinery Overseas
High Light:

needle winder


bldc winding machine

CNC 4 Axis Cam Indexing Thin Wire Below 0.5mm Stator Needle Winding Machine WIND-3-Needle




(1) Application


Hood motor, hair curler motor, servo motor, brushless motor, stepper motor, fan motor,

Bladeless fan motor, massage chair motor, electric tool motor and other types of brushless DC motor.




(2) Competitive Advantages


This machine can wind 3 slots at a time


(6 slots in 2 times, 9 slots  finished in 3 times)




(3) Parameter


Wire diameter 0.1mm to 0.8mm (AWG20 to AWG38)
Working station Single station
Stator ID 12mm to 80mm
Stator OD 20mm to 100mm
Stator stack height 3mm to 70mm
Slots 2 to 24slots
Speed 0 to 500RPM
Power supply 220V,50Hz
Dimension 800mm *800mm*1500mm
Weight about 330KGS




(4) Configuration


Controller: 4 Axis CNC


Guide screw rod : TBI


Touch screen: Weinview 7''


Main motor(winding): Mige Servo motor 1.2KW


Arraying Motor: Shenli Reducer


Indexing Motor:Kangrun 34HY9401-32B stepping motor (cam drive)


Sensor: Panasonic


Switch power supply: Mean Well


Bearing: NSK




Below samples are needed for machine manufacturing and commissioning:


1. Stator stack 5pcs without winding


2. Wound stator 1pc


3. Copper wire 1 roll enough for winding 15pcs stators




BLDC Typical Applications


BLDC motor has a wide range of applications, such as automotive, tools, industrial industrial control,


automation, and aerospace. In general, BLDC can be divided into the following three main purposes:


Continuous load application, Variable load application, Positioning application



1. Continuous Load Application


This kind of application is mainly used in those fields that require a certain rotational speed but have low


requirements on the accuracy of rotational speed, such as applications such as fans, pumping machines,


and blower gas. Usually this type of application is relatively low cost and is mostly open-loop control.


2. Variable Load Application


This category mainly refers to applications where the motor speed needs to change within a certain


range. In such applications, there are higher requirements on the high speed characteristics and dynamic


response characteristics of the motor. Household washing machines, dryers and compressors are good


examples. In the automotive industry, oil pump control, electrical controllers, engine controls and


electronic tools are also good examples. There are also many applications in aviation, such as


centrifuges, pumps, robotic arms, gyroscopes, and so on. In this area, motor feedback devices are often


used to form semi-open loops and closed loops for control. This requires complex control algorithms,


increasing the complexity of the controller also increases the system cost.


3. Positioning Application


Most industrial control and automation applications fall into this category. In these applications energy


delivery, such as gears or conveyor belts, is often performed, so the system has special requirements on


the dynamic response and torque of the motor speed, and these applications may also need to change


the direction of the motor at any time. The motor may work in Constant speed, acceleration, reduction


phases, and possibly changes in load during these phases, so this places higher demands on the


controller. Usually this type of control uses closed-loop control, even with torque, speed, and position


loops. Three control loops. The photoelectric encoder and some synchronization equipment may be used


for speed measurement. Sometimes these sensors are used to measure the relative position and


sometimes to measure the absolute position. Many of these process controls, mechanical controls, and


transportation controls fall into this category.




In general, brushless motors have high speed/torque ratios, good dynamic characteristics, high efficiency,


long life, low noise, wide speed range, and ease of manufacturing compared to conventional brushed


motors and induction motors. Excellent characteristics. In particular, the power output per unit volume


allows it to be used in applications that are sensitive to size and weight. These excellent characteristics


make BLDC has a very wide range of applications in the field of industrial control, automotive industry,


aerospace and so on!
