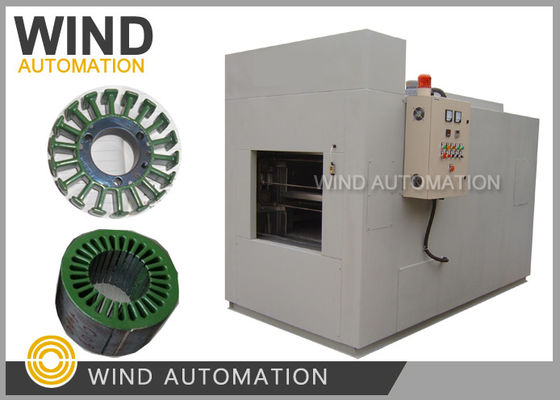

Automatic Oven For Pre-Heating Curing Of Powder Coated Stator Rotor Armature
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | New | Automation Type: | Fully Automatic |
|---|---|---|---|
| Electrostatic Powder Resin: | Not Electrostatic,Fluidized Bed Process | Stator Type: | Small High Speed Motor Stator Coil For Micro Motor |
| Application: | Mixer Meat Grinder Power Tool Small Electromotor Of Home Appliances. | After Sales: | Engineers Available To Service Machinery Overseas |
| High Light: | electrostatic powder coating machine,resin coating machine |
||
Automatic Oven For Pre-Heating Curing Of Powder Coated Stator Rotor Armature
(1) Application:
For heating the big size stator rotor armature before dipping to fluid bed or after coated for braking
(2) Competitive Advantages:
1. This oven working with power coating machine is automatic oven
2. Heating power 7.2KW can heat up to 200℃~230℃
3. Inner wallboard use 150mm thick wool to keep the temperature
(3) Parameter:
1. Oven is driven by chain and heating method is Stainless steel electric heating tube
2. Heating power 7.2KW can heat up to 200℃~230℃
3. Inner wallboard use 150mm thick wool to keep the temperature ,
Inner side 1.5mm cold steel, outside 1.2mm cold steel
4. Electrical controlling device 1pc , with 12 working area, loading-unloading 5pcs , Curing area 7pcs,
each working area can hang 3pcs armatures (per armature or stator size)
Please click below picture to view video
