BLDC Motor Stator Needle Winding Machine With Tooth Coil Tap Wire

China BLDC Motor Stator Needle Winding Machine With Tooth Coil Tap Wire supplier

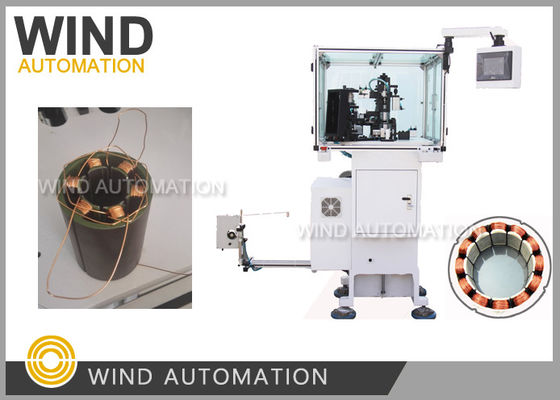

Large Image :  BLDC Motor Stator Needle Winding Machine With Tooth Coil Tap Wire

Product Details:

Place of Origin: China
Certification: CE
Model Number: WIND-2-TSM

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Pallet
Payment Terms: T/T
Detailed Product Description
Winding Way Of Stator: What Ever Delta Or Star Winding Way Needle No.: One Needle Or Two Needles Or Three Needles
Arraying: Whether Arraying According To Stator Winding Diagram Automation Type: Fully Automatic
Machine Color: White Or Per Customer Requirement After Sales: Engineers Available To Service Machinery Overseas
High Light:

needle winder


motor stator winding machine

BLDC Motor Stator Needle Winding Machine With Tooth Coil Tap Wire WIND-2-TSM
Tooth winding machine WIND-2-TSM produce Muti poles BLDC Stator winder needle winding for Stator
with 6 poles, 8 poles,9 poles, 10poles,12 poles, 14 poles,18 poles (Tailor made,Customized)
All types of BLDC motor, stepping motor, fan motor stator can be wound by WIND-2-TSM series with
different kind of winding method with arraying, with bridge wire placement, wire tapping covering stator
with different winding way.
1.Wide application for all type of BLDC stators with small and big size, heavy or light weight,
   Big or small wire size, arraying or no wire displacement needed, wire tapping or no taping
2. Wide wire gauge range from 0.08~1.2mm (AWG17~AWG39)
3. Delta PLC, Delta servo systemHuman-machine Interference and rich experience in 6,8,9,12 tooth
    can ensure the good performance of winding machine





Wire diameter:0.08 to 1.2mm
Stator ID: above 19mm
Stack height: 7 to 90mm
Air pressure:5~7kg/square centi-meter
Power:AC380V 50/60Hz
Weight: about 500kgs
Dimension: 1800(L)x1150(W)x1600(H)mm




The automatic brushless stator winding machine series WIND-TSM is suitable for the winding of various


types of brushless motor coils. The enameled wire is directly wound on the coil core. Compared with the


traditional method of stator coil winding and windings embedding method, it saves the cost of the


enameled wire and increases the number of coils (related to electric motor slot filling rate).

The magnetic flux increases the power of the motor. This machine WIND-TSM series can automatically
complete the winding, indexing, arraying, cutting and other processes. The operator only needs to take
the work of picking and placing the stator, which reduces the labor intensity of the operator and achieves
automation. In addition, the machine has a significant functional feature. The copper wire nozzles are
moving according to the setting parameter, so that the wound wire package is compact, neat, excellent
laying and nice looking.

Parts list of WIND-2-TSM
1Spindle beltHTD8M-7761pc
2Arraying beltHTD8M-6241pc
3Indexing Belt224XL1pc
4FuseRT18-32 2A2pcs
5FuseRT18-32 10A2pcs
6Magnetic switchAL-11RL-021pc
8Ceramic wheel∮42pcs
1Allen wrench8pcs1Set
2Open end wrench13-16mm1pc
3Word screwdriver1.5 inches1pc
4Phillips screwdriver4inches1pc
6Tool box 1pc
7Diagonal pliers 1pc
Custom part
1Nozzle 1pc

Please click below picture to view video
BLDC Motor Stator Needle Winding Machine With Tooth Coil Tap Wire
