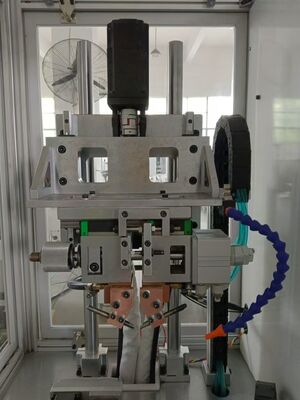

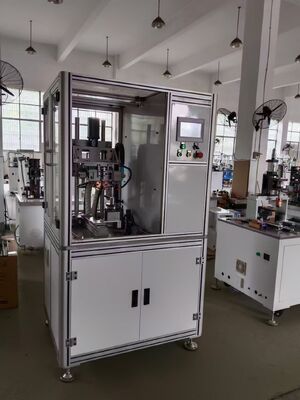

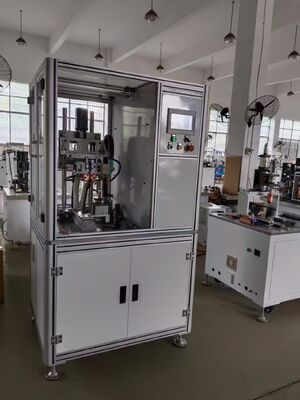

How to Terminal Welding Joint Brushless Motor Stator Lead Wire Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Welding Application: | Integrated Starter Generator Assembly | Welding Type: | Brushless Stator Resistance Welding Machine |
|---|---|---|---|
| Motor Type: | Drone Motor, Fan Motor,BLDC Motor | Welding Place: | Stator Led Terminal Wire Welding |
| Fusing Type: | The Welding Operation And Setting Is Easy For Operator | PLC: | Mitsubishi |
| Gross Weight: | 800KGS Including Package Pallet | 4 Axis Servo Device: | Welding Spindle,Indexing Spindle, Feeding Shaft And Lifing Shaft With Mitsubishi Servo Motor |
How to Terminal Welding Joint Brushless Motor Stator Lead Wire Machine
https://youtu.be/bdMDBaekGwI?si=bX7Hgp_bPXfTgCbJ

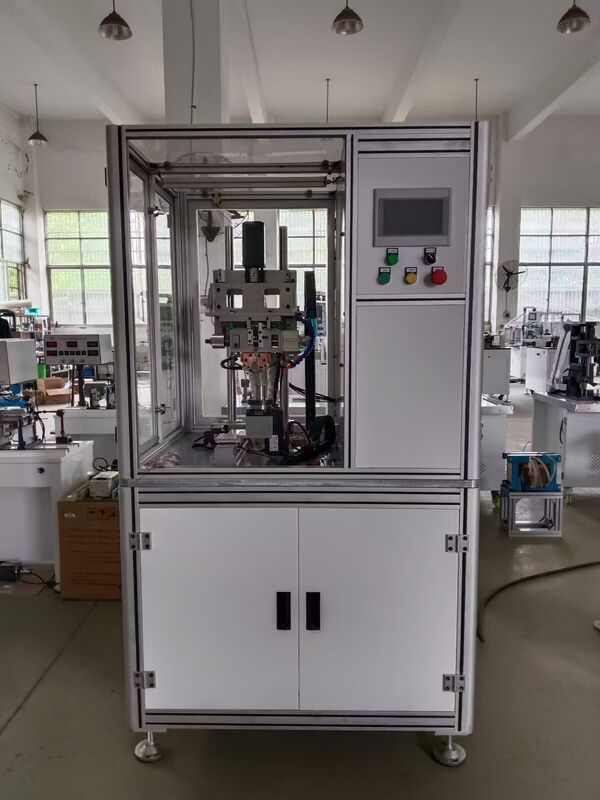

The BLDC Stator Welding Machine is used for welding enameled copper wires to stator terminals of brushless DC motors,
ensuring reliable electrical connection, high welding consistency, and efficient automated production.
(1) Application:
Suitable for the production of:
- Cooling fan motors
- Drone motors
- Automotive BLDC motors
- Power tool motors
- Household appliance motors
(2) Wire terminal Welding machine Advantages:
- Automatic stator positioning and clamping
- High welding accuracy
- Stable and consistent welding quality
- Low contact resistance
- High production efficiency
- Easy parameter adjustment through touch screen control
- Suitable for different BLDC stator specifications
(3) Wire terminal Welding machine Q&A:
(4) Wire terminal Welding fusing machine Principle:
The machine positions the stator accurately and welds the enameled wire to the terminal through controlled heat and pressure (or other welding methods such as resistance welding / laser welding, depending on configuration).
This process removes the enamel insulation and creates a strong, reliable electrical connection.
Please click below photo to view video
