Automatic Hot Staking Machine Argon Arc Welding Machine To Weld Motor

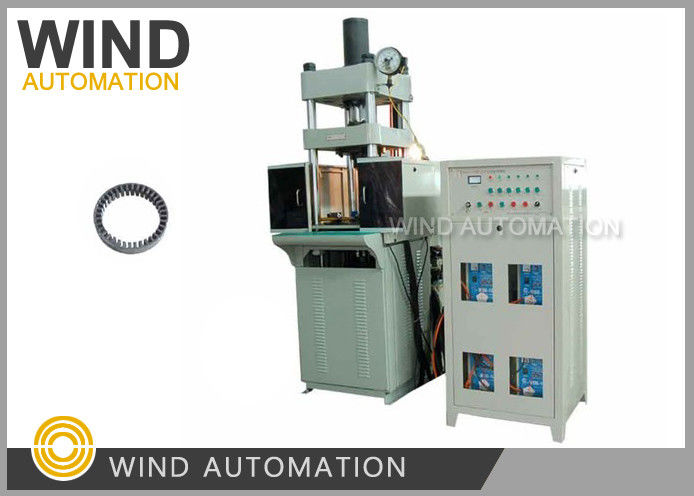

Automatic Argon Arc Welding Machine To Weld Motor Stator Iron Core Stack WIND-ARGON-160

(1) Competitive Advantages

a. Use hydraulic lamination, tightening, welding and three cylinders structure,

b. PLC has double guns, three guns and four guns etc. welding methods.

Brazing is the welding way which use a metal material with a lower melting point than the workpiece as the

solder material. The workpiece and the brazing material are heated to a temperature higher than the

melting point of the solder and lower than the melting point of the workpiece. The workpiece is wetted with

the liquid solder and the gap is filled and the workpiece is filled. Inter-diffusion between atoms to achieve

the welding method.

(2) Parameter

Power Supply Voltage: Three phase 380V 50Hz

Compaction Force: 25KN-35KN

Travel: 10-200mm

Welding Current: 30-200A DC

Stator OD range: 100 to 160mm, 100~250mm
