How To Produce 3Phase AC Motor WIND-3A-CWI in Compact Way
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Hydraulic Or Servo Device: | Insert Coils And Wedge With Servo System | Slot Size Of Stator: | Min.slot Size Machine WIND-90-CWI Handle Is 1.36mm |
|---|---|---|---|
| Induction Motor: | Pump, Compressor, Washing Machine Ect | Voltage: | 3Phase, 380V,50Hz |
| Machine Color: | White Or Per Customer Requirement | After Sales: | Engineer Available For Oversea Support |
How To Produce 3Phase AC Motor Induction Motor Pump WIND-3A-CWI in Compact Way
The different kinds of stator production don’t want to rely on operator, so
1pc paper insertion machine,
1pc winding and insertion machine with 3 winding heads and 1 insertion station is suggested
1pc middle forming

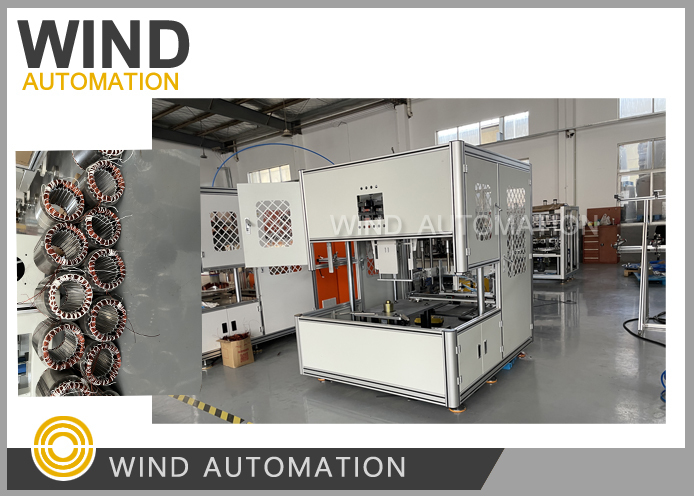

3 phase AC motor prodution machinery
(1) Application

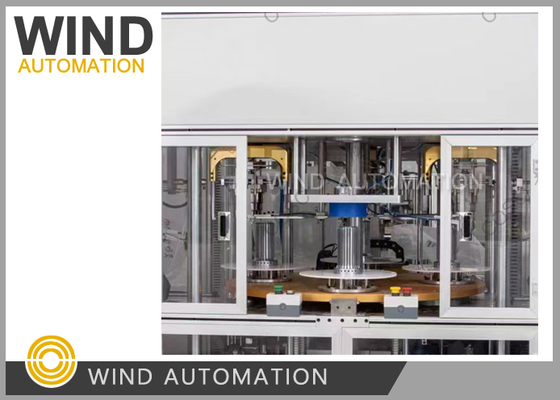

Induction motor pump coil winding and wedge insertion machine WIND-3A-CWI is suitable for insertion of
induction motor coils which is with concentric winding method
(2) Parameter
Thickness of stator lamination: 8mm-125mm
Min stator ID: Φ 30mm
Max outer diameter of stator: Φ 160mm
Max winding feeding rate: ≤ 80%
Input: 380V/ 50Hz
Air pressure: 0.5-0.8MPa
Power: 3.5KW
Machine productivity: 400pcs/ 8 hours
Dimension: 1800mm × 650mm × 1700 mm
Weight: ≈ 1000kg
Please click below photo to view video
