Payment & Shipping Terms:
|Slot Cell Inserter:||96 Slots||Insertion Speed:||2 Second Per Slot|
|Material:||DMD, DM, Polyester Film 0.18~0.2mm||Servo Motor:||Can Have One Or Two Mitsubishi Servo Motor|
|Machine Color:||White Or Per Customer Requirement||After Sales:||Engineer Available For Oversea Support|
paper inserting machine,

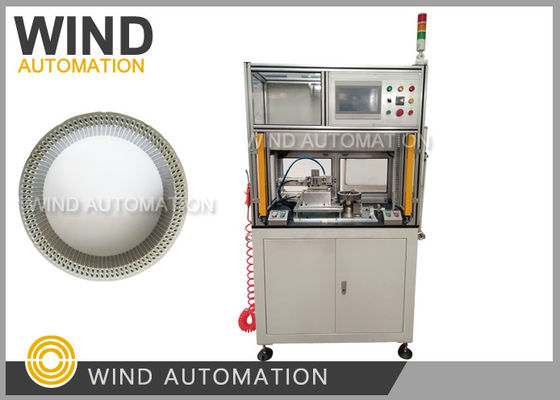

BSG New Energy Drive Motor Stator Slot Insulation DMD Paper Inserting Machine WIND-SZ-1A
New Energy Motor Inserter is a special device for the S/B insert of the drive motor. The device consists of
the body part, the paper feed part, the paper forming heating part, the paper feed part, the paper cutting
and the servo indexing part, and the servo motor accurate indexing ensures accurate and consistent
inserts, high speed and automation, and can be equipped with automated assembly line operations.
It can insert paper for different number of slots and different diameters of drive motor stator.
Raw material is a roll of insulation paper with the appropriate width.
The paper inserting machine carry the paper, guiding,heating, forming, feeding and cutting-off
(2) Competitive Advantages
Efficiency 1.5 second per slot (for a 60mm stack height stack)
Save labor cost can insert slots from two side such as 96slots both side work like a double station
Supply voltage: 380V/50HZ
Feed length: servo setting (0-100mm)
Production efficiency: about 2 seconds / slot (core 60mm)
For 96slots stator, paper inserting efficiency is 180pcs per shift
Equipment weight: about 600kg
Equipment size: 900mm×700mm×1950mm
Please click below paper inserted stator photo to view video
