Double Station Armature Testing Equipment For Low Duty Car Starter

China Double Station Armature Testing Equipment For Low Duty Car Starter supplier

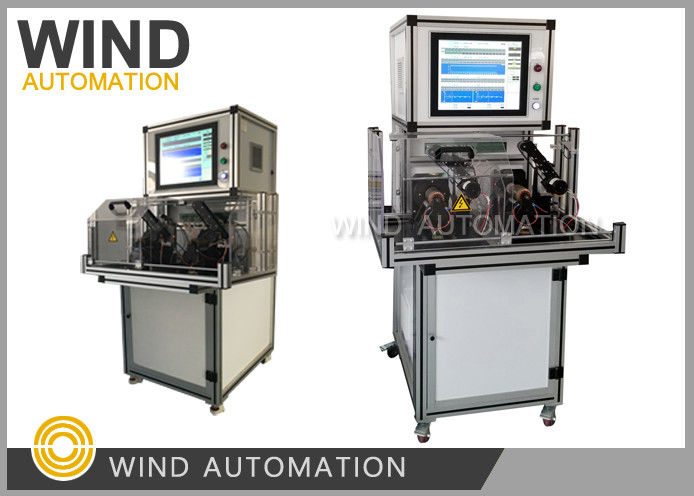

Large Image :  Double Station Armature Testing Equipment For Low Duty Car Starter

Product Details:

Place of Origin: China
Model Number: WIND-ATS-02

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: 35 working days
Payment Terms: T/T
Contact Now
Detailed Product Description
Test Item: DC Resistance, Isolation Resistance,Surge,Hipot Armature Type: Starting Motor Armature
Working Station: Double Station Automation Type: Automatic Positioning
Testing Item Content Display: Test Result Intuitive Display On Screen One By One Armature Slots: 13, 17, 19 (few), 21,23,25,27, 28,29,33slots (common)

Double Station Armature Tester For Low Duty Car Starter WIND-ATS-02

  Shanghai Wind Automation
Tester Model WIND-ATS-02
Hardware Measurement device PC &PLC
Operating system & version Windows
Software Embedded Systems
Statistic data option Yes
Print report function USB port for statistic data unload
Labeling function Can be added with additional cost
Mechanical specs
Pneumatic positionnning yes
Extensible mechanical tools with Nbr of bare armature yes
Change over time 10min
Capability of test station Two station
Bar to Bar resistance yes
Surge Test yes



(1) Application


Starter armature upto 36 slots


covering 13, 17, 19 (few), 21,23,25,27, 28,29,33 slots (common)




(2) Advantages


a. Automatic positioning, the operator no need to check initial positioning by hand


b. The biggest starting armature manufacturer ordered over 10pcs and 100% satisfaction


c. Testing panel cycle time: 8~9s (according to 33bars)




(3) Technical Data



Test Item



Test Method



Bar to Bar resistance,0.01mΩ~10mΩ

(Out of range display OVER)



Four-terminal measurement to ensure accuracy



Welding resistance,0.001mΩ-10mΩ

(Out of range display OVER)



Six-terminal measurement to ensure accuracy



Cross resistance 0.01mΩ-10mΩ



Four-terminal measurement to ensure accuracy



Surge 100-1000V (100V/time)

Pulse crest:0.5u sec, Frequency 1~40MHz




Standard waveform is Write, OK waveform is Green,

NG waveform is Red



Isolation resistance DC 500V

Testing time:1~10s (0.1s/time)




Accuracy: ≤±5%



Hipot AC 100-1000V



Testing time:1~10s (0.1s/time)





(4) Main Configuration


15’’ Touch screen Sampling Chip: BB Relay:NAIS High voltage relay:Meder


Pneumatic parts:Airtec


Power: AC 220V,50Hz


Air pressure:0.4~0.6MPa




Dimension: 950mm*1250mm*580mm


HS Code:9030390000




(5) FixtureTolerance range


For types of armature, the fixture are needed and tolerance adaption are as below:


1. Armature commutator with same slot bars, the outside diameter tolerance is +4mm


2. When armature outside diameter change, the holding fixture should be changed




(6) Wearing Parts


1.Communication Contact Pins (One year for automatic type, half year for manual loading type)


2. Rubber Ring Fixture




(7)  Ask and Answer




It’s not clear for me this percentage of 25 – 30%. We know that the surge test is a comparative test by


wave for results. In your manual is telling that the results deviation of 5%. Please explain me better why


the pulse alternates from 1100 to 1050 for example?




Surge test use High voltage pulse voltage applied to windings, By decaying and comparing the oscillation


waveform space to determine whether the winding have a problem,


The result is a comparing of sample waveform and tested waveform 's area difference, S1-S0/S0 is the


Percentage, it should be within the 'Judge Uper(%)',


Usually some of our local user, the starter armature manufacturer set it as 25%~30%.


And the pulse voltage is not DC, it is alternating,


For example when you input 1000V, it might be 1100V or 1050V,


Applied voltage result in current, the speed of energy release is different every time, too


So the data showed is just a reference, it will be different every time,


In general, The Surge test result is Qualitative rather than quantitative.
