Slot Liner Stator Insulation Cuffing And Cutting Machine For Roll Width 600mm

China Slot Liner Stator Insulation Cuffing And Cutting Machine For Roll Width 600mm supplier

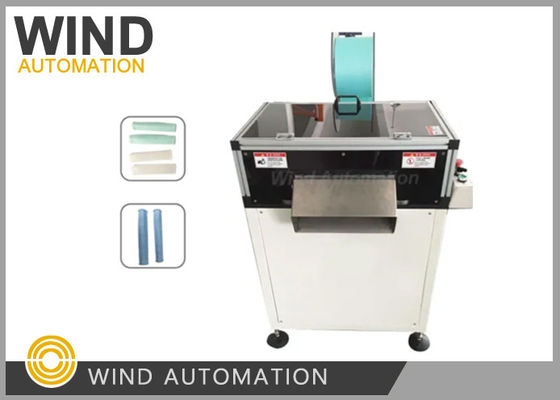

Large Image :  Slot Liner Stator Insulation Cuffing And Cutting Machine For Roll Width 600mm

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: WIND-600-IF

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Wooden pallet suitable for sea or air shipment
Delivery Time: 30 working days
Payment Terms: T/T
Detailed Product Description
Condition: New With Or Without Heater: No Heating
Edge Folded Width: Edge Bending 3mm~10mm Cutting Length: 10 ~ 9999 Mm
Machine Color: White Or Per Customer Requirement After Sales: Simple Machine Only Need To Replace Cutter

Slot Liner Stator Insulation Cuffing And Cutting Machine For Roll Width 600mm WIND-600-IF







Slot Liner Stator Cuffing Machine application



This cuffing and cutting machine form the insulation pape for slot liner stator to do manual paper inserting,

The paper roll width can be up to 600mm, also other roll width cuffing machine can be custom made,

Insulation polyester film,DMD,PET,NMN,NHN,Nomex for application such as pump,ceiling fan, compressor,hood motors



The insulaiton materials are mainly used as a slot liner,slot closure,phase and turn-to-turn insulation in



low or medium voltage electrical motors.Besides it is also used as interlayer insulation in transformers and



other electrical appliances.





Electrical Insulation - Wiring, Sleeving & other Electrical Sheilding Products. These products are used in



electrical applications to insulate high voltage current from surrounding areas. These products are



typically known for dielectric strength, arc resistance, thermal performance and insulating properties.



Common applications include dry and oil-filled transformers, switch gears, relays, wire wrap, welding



apparatus, electrical fixtures, commercial & residential electrical, lighting systems and more. These



products are known for their ability to insulate electrical current, withstand mositure and corrosion, and



resist arc and flame. Many of these materials can serve as practical and safe insulators for low to



moderate voltages (hundreds, or even thousands of volts).









Advantages



1. Simple and easy to operate



2. Machine can cut and bend insulation for the motors and



   also cutting insulation without bending for other type of slotless motor



3. No maintenance needed, only polish or replace cutter after 2 year to 5 years usage







Parameter





Paper width: 50mm~600mm
Feeding length: 10mm-9999mm
Fold edge width(Cuff height): 3~10mm
Insulation thickness: 0.01mm~0.5mm
Cycle time: 1s/pc (accoding to feeding length)

Paper width, feeding length and fold edge(cuff height) is adjustable

PLC: Mitsubishi

Stepper Motor: China local brand

Sensor: Omron

Other electrical parts: Schneider

Input: 220V/50Hz/60Hz

Weight: ≈ 300kg







Please click below link to view video

Electric motor insulation material cuffing,creasing and cutting machine WIND-600-IF insulation paper forming from EmilyGao of coils winding supply on Vimeo.
