Commutator Turning Machine Copper Burrs Remove For DC Motor With Copper Commutator

Certification
Good quality Needle Winding Machine for sales
Good quality Needle Winding Machine for sales
We trust you and have very good references of you from our Shanghai colleagues

—— Olayo Delgado

We are very happy with the machines!

—— Efrain.Alvarado

I'm Online Chat Now

Commutator Turning Machine Copper Burrs Remove For DC Motor With Copper Commutator

China Commutator Turning Machine Copper Burrs Remove For DC Motor With Copper Commutator supplier
Commutator Turning Machine Copper Burrs Remove For DC Motor With Copper Commutator supplier Commutator Turning Machine Copper Burrs Remove For DC Motor With Copper Commutator supplier

Large Image :  Commutator Turning Machine Copper Burrs Remove For DC Motor With Copper Commutator

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-3A-PL

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1 Pallet Weight: about 1,100Kg Machine dimension: 1,100mm x 1100 mm x 1,830mm3
Payment Terms: T/T
Detailed Product Description
Condition: Used In Automatic Line Certificate: Main Parts CE
Working Station: One Station One Cutter Or Two Cutters Machine Color: White Or Accordingly To Customer Requirement
Three Axis: Servo Device Of X,Y,Z Axis Turning Commutator Roundness: ≤0.0035mm
HS Code: 84581100 Lathed Purpose: Required Commutator OD, Surface Micro Finishing, Runout

Commutator Turning Machine Copper Burrs Remove For DC Motor With Copper Commutator

WIND-3A-PL

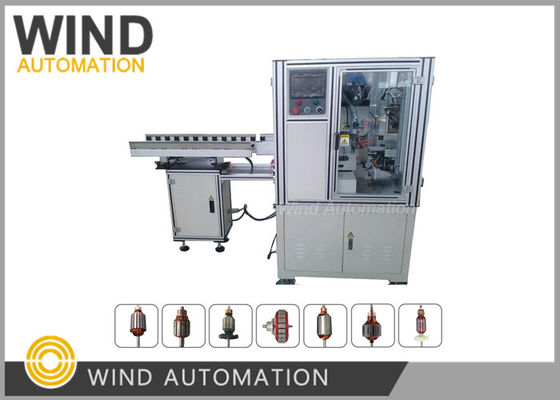

This turning machine is controlled by three axis, equipped with vertical pressing arm and deburring device to remove remianing copper burrs between commutator cracks after turning. 1meter feeding rack improves machine storage and reduces manual loading and unloading time.



Armature feeding direction can be customized, from left to right or right to left. Operator put armature in the feeding rack, then stepping cylinder will transfer armature to cutting station. After cutting, stepping cylinder will transfer armature to deburring device to do deburring. (Note: both cutting station and deburring station are equipped with dust collector outlet ). After this step, the whole turning process is finished, then stepping cylinder will transfer it to feeding rack. Machine will alarm and stop working if the feeding rack is full. It will resume to work while operator take away all the finished armature.





Machine configuration

PLC Mitsubishi
Interface module Mitsubishi
Z axis servo motor Mitsubishi 750WX1
X axis servo motor Mitsubishi 750WX1
Vertical pressing servo motor Mitsubishi 750WX1
Touch screen Weinview
Conveyor belt Customized
Precise linear guides HIWIN customized
Precise ball screw rod TBI C3 Grade customized
Work plate Steel No. 45
Cutter transfer base Steel No. 45
V block installation base Steel No. 45
Cutter Diamond
V block holder Diamond
Cylinder Air TAC
Industry vacuum cleaner Equipped



Specification

Commutator roundness ≤0.0035mm(as per commutator material, shaft & ball bearing quality)
Surface roughness Ra 0.4(as per requirement)
Max cutting volume 0.1mm (commutator side)
Rotation speed range 3000rpm
Armature OD 20~100mm
Shaft length of commutator side ≤100mm
Shaft OD 3~25mm
Commutator OD 4.3~40mm
Z axis cutter feeding speed Set on touch screen, steplessly adjustable
Z axis cutter retreating speed Set on touch screen
X axis cutter feeding speed Set on touch screen, steplessly adjustable
X axis cutter retreating speed Set on touch screen
Z axis cutting length Set on touch screen, 4 cutting length adjustable(Max 30mm)
Z axis travel Max 80mm
Air source 4~6kg/cm2
Fixture Diamond V block
Total power 4KW
Weight 1000KG
Power supply Customized
Deburring device Equipped



The smallest armature been turned is with Lamination OD 22.7mm (0.89 inch), shaft diameter 3.0mm, commutator OD 7.0mm,
